slient fan , 12v DC Cooling fan, DC axial flow fans
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

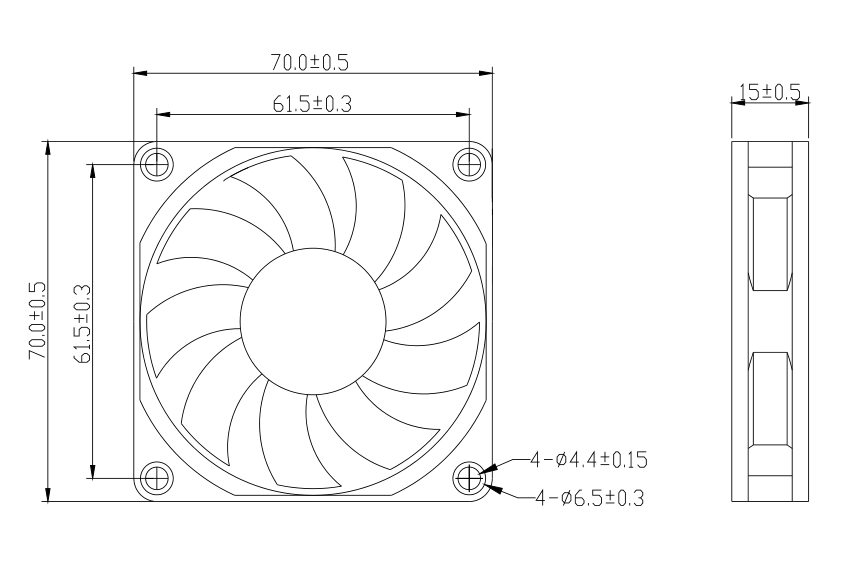

| Size: 70*70*15mm Series
| Voltage: DC 12V-24V
| Current: 0.06-0.48Amp
| Speed: 3500-4500rpm
| Total Airflow: 21-28CFM
| Air Pressure: 2.91-4.66mmH2O
| Total Noise: 33-40dBA

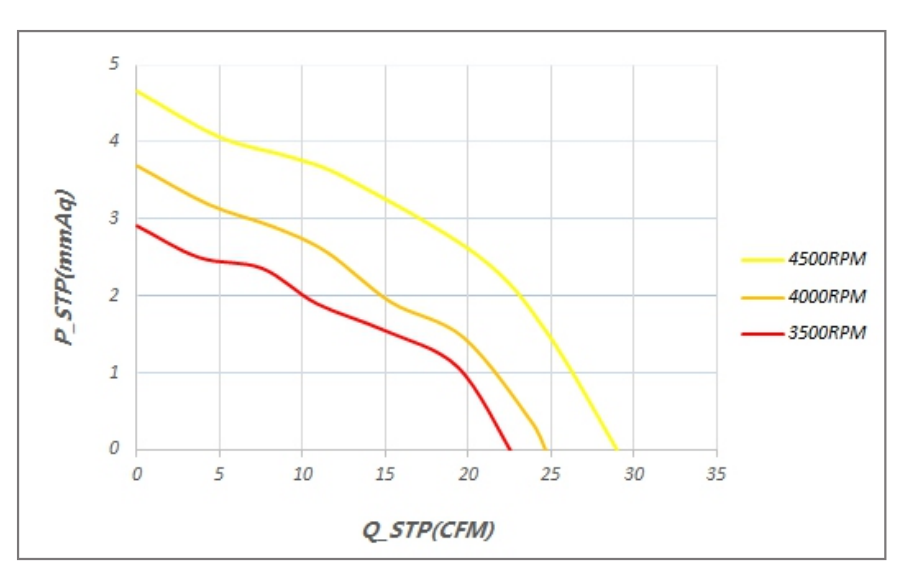

| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 70*70*15-LO5 | 5 | 3.6to6.8 | 0.20 | 1.00 | 3500 | 0.64 | 22.52 | 2.91 | 0.11 | 33.5 |
| 70*70*15-L12 | 12 | 7.0to13.5 | 0.08 | 0.96 | ||||||
| 70*70*15-L24 | 24 | 18to26.5 | 0.04 | 0.96 | ||||||
| 70*70*15-M12 | 12 | 7.0to13.5 | 0.12 | 1.44 | 4000 | 0.70 | 24.65 | 3.69 | 0.15 | 35.3 |
| 70*70*15-M24 | 24 | 18to26.5 | 0.06 | 1.44 | ||||||
| 70*70*15-H12 | 12 | 7.0to13.5 | 0.17 | 2.04 | 4500 | 0.82 | 28.97 | 4.66 | 0.18 | 40.5 |
| 70*70*15-H24 | 24 | 18to26.5 | 0.09 | 2.16 | ||||||
