dc brushless fan , Cooling fan , 24v fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

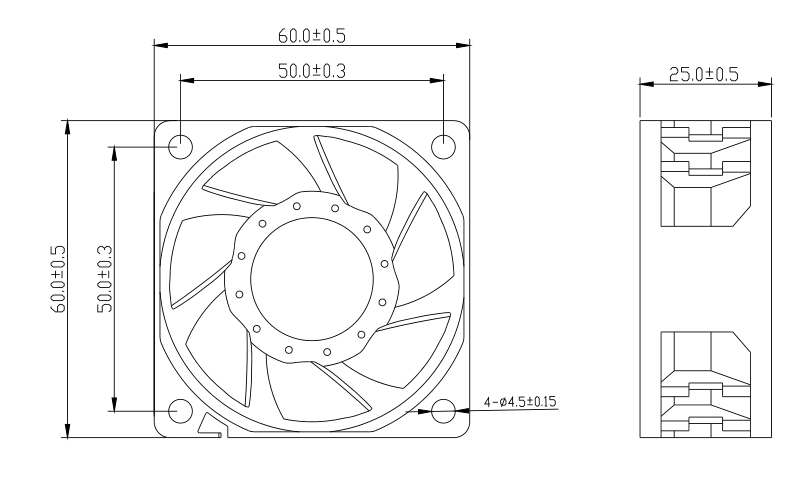

| Size: 60*60*25mm Series
| Voltage: DC 5V-48V
| Current: 0.05-0.42Amp
| Speed: 3500-6000rpm

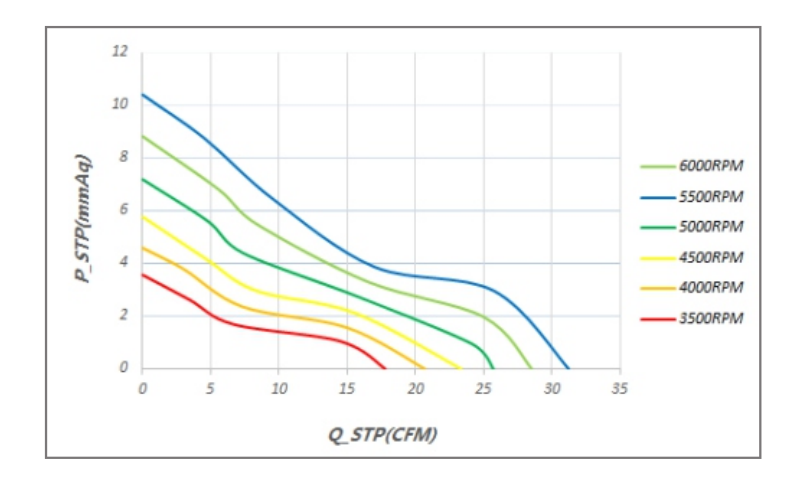

| Total Airflow:17.77-31.21CFM
| Air Pressure: 3.56-10.39mmH2O
| Total Noise: 30-45dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 60*60*25-L12 | 12 | 7.0to13.5 | 0.14 | 1.68 | 3500 | 0.50 | 17.77 | 3.56 | 0.14 | 30.4 |
| 60*60*25-L24 | 24 | 18to26.5 | 0.07 | 1.68 | ||||||
| 60*60*25-M12 | 12 | 7.0to13.5 | 0.17 | 2.04 | 4000 | 0.59 | 20.67 | 4.58 | 0.18 | 33.9 |
| 60*60*25-M24 | 24 | 18to26.5 | 0.10 | 2.40 | ||||||
| 60*60*25-M48 | 48 | 36to54 | 0.05 | 2.40 | ||||||
| 60*60*25-H12 | 12 | 7.0to13.5 | 0.19 | 2.28 | 4500 | 0.66 | 23.32 | 5.76 | 0.23 | 37.2 |
| 60*60*25-H24 | 24 | 18to26.5 | 0.11 | 2.64 | ||||||
| 60*60*25-H48 | 48 | 36to54 | 0.06 | 2.88 | ||||||
| 60*60*25-H12-HH | 12 | 7.0to13.5 | 0.23 | 2.76 | 5000 | 0.73 | 25.69 | 7.18 | 0.28 | 39.2 |
| 60*60*25-H24-HH | 24 | 18to26.5 | 0.12 | 2.88 | ||||||
| 60*60*25-H48-HH | 48 | 36to54 | 0.07 | 3.36 | ||||||
| 60*60*25-H12-VH | 12 | 7.0to13.5 | 0.32 | 3.84 | 5500 | 0.81 | 28.5 | 8.81 | 0.35 | 42 |
| 60*60*25-H24-VH | 24 | 18to26.5 | 0.16 | 3.84 | ||||||
| 60*60*25-H48-VH | 48 | 36to54 | 0.09 | 4.32 | ||||||
| 60*60*25-H12-EH | 12 | 7.0to13.5 | 0.42 | 5.04 | 6000 | 0.88 | 31.21 | 10.39 | 0.41 | 45.2 |
| 60*60*25-H24-EH | 24 | 18to26.5 | 0.18 | 4.32 | ||||||
| 60*60*25-H48-EH | 48 | 36to54 | 0.10 | 4.80 | ||||||
