dc brushless fan , Cooling fan , 24v fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

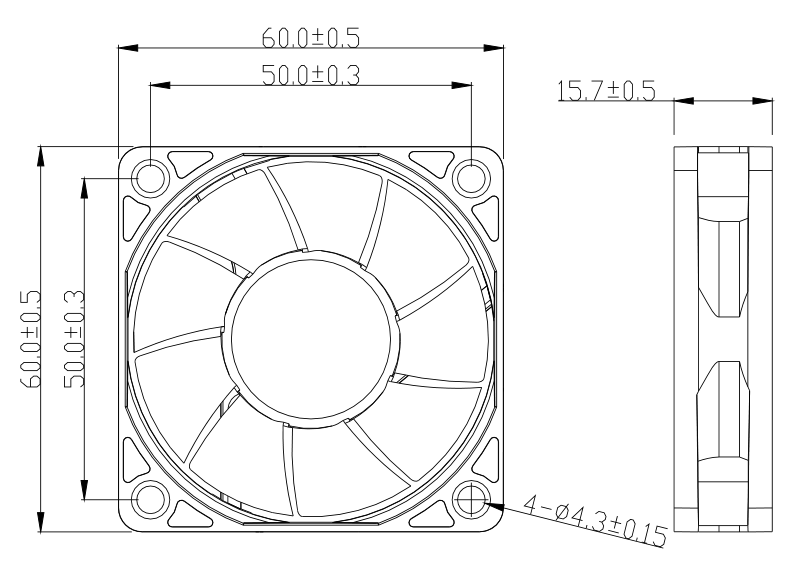

| Size: 60*60*15mm Series
| Voltage: DC 5V-24V
| Current: 0.13-0.35Amp
| Speed: 4000-6000rpm
| Total Airflow:15.09-25CFM
| Air Pressure: 3.38-7.33mmH2O
| Total Noise: 33-45dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 60*60*15-LO5 | 5 | 3.6to6.8 | 0.35 | 1.65 | 4000 | 0.42 | 15.09 | 3.38 | 0.14 | 32.2 |
| 60*60*15-L12 | 12 | 7.0to13.5 | 0.15 | 1.60 | ||||||
| 60*60*15-M12 | 12 | 7.0to13.5 | 0.20 | 2.40 | 5000 | 0.55 | 19.56 | 5.23 | 0.21 | 36.0 |
| 60*60*15-M24 | 24 | 18to26.5 | 0.10 | 2.40 | ||||||
| 60*60*15-H12 | 12 | 7.0to13.5 | 0.26 | 3.12 | 6000 | 0.71 | 25.0 | 7.33 | 0.29 | 45.0 |
| 60*60*15-H24 | 24 | 18to26.5 | 0.13 | 3.12 | ||||||
