dc fan , Cooling fan , 24v fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

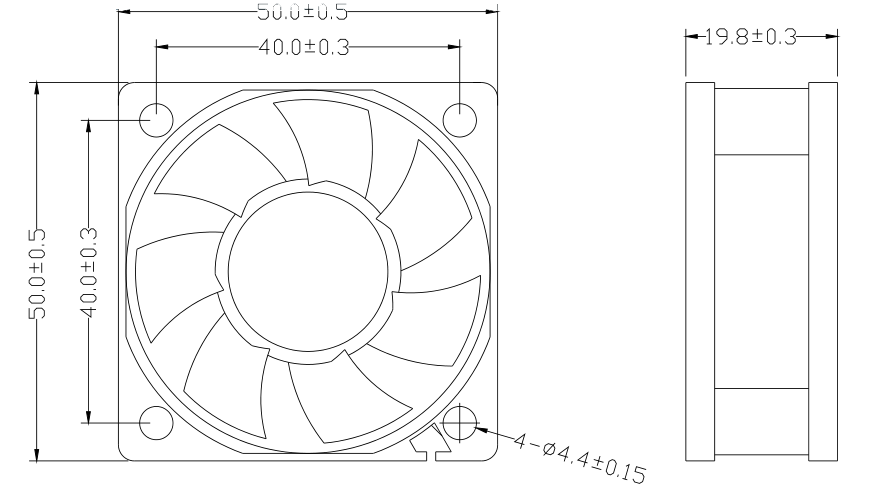

| Size: 50*50*20mm Series
| Voltage: DC 5V-24V
| Current: 0.05-0.4Amp
| Speed: 4000-6500rpm
| Total Airflow:12.18-20.78CFM
| Air Pressure: 2.62-6.89mmH2O
| Total Noise: 28-41dBA

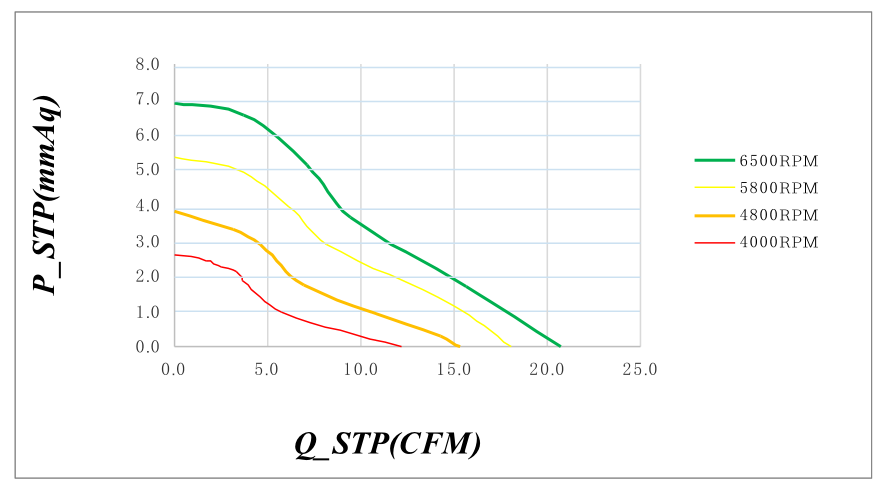

| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 50*50*20-L05 | 5 | 3.6to6.8 | 0.18 | 0.90 | 4000 | 0.35 | 12.18 | 2.62 | 0.10 | 28.2 |
| 50*50*20-L12 | 12 | 7.0to13.5 | 0.11 | 1.32 | ||||||
| 50*50*20-L24 | 24 | 18to26.5 | 0.05 | 1.20 | ||||||
| 50*50*20-MO5 | 5 | 3.6to6.8 | 0.22 | 1.10 | 4800 | 0.44 | 15.37 | 3.82 | 0.15 | 33.2 |
| 50*50*20-M12 | 12 | 7.0to13.5 | 0.14 | 1.68 | ||||||
| 50*50*20-M24 | 24 | 18to26.5 | 0.07 | 1.68 | ||||||
| 50*50*20-H05 | 5 | 3.6to6.8 | 0.40 | 2.00 | 5800 | 0.51 | 18.09 | 5.34 | 0.21 | 36.8 |
| 50*50*20-H12 | 12 | 7.0to13.5 | 0.22 | 2.64 | ||||||
| 50*50*20-H24 | 24 | 18to26.5 | 0.11 | 2.64 | ||||||
| 50*50*20-H12-HH | 12 | 7.0to13.5 | 0.28 | 3.36 | 6500 | 0.59 | 20.78 | 6.89 | 0.27 | 41.5 |
| 50*50*20-H24-HH | 24 | 18to26.5 | 0.14 | 3.36 | ||||||
