dc brushless fan , Cooling fan , 24v fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

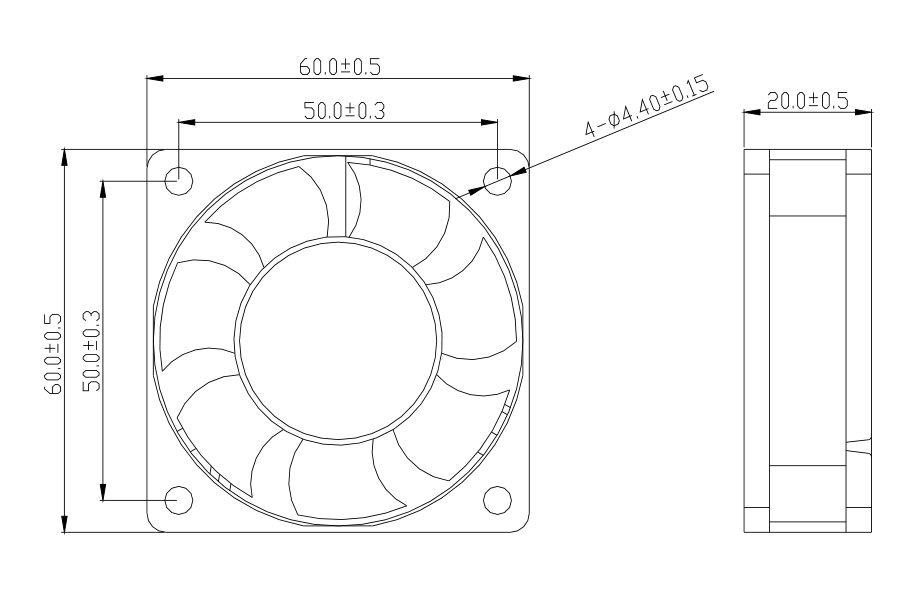

| Size: 60*60*20mm Series
| Voltage: DC 5V-24V
| Current: 0.03-0.12Amp
| Speed: 3500-4500rpm

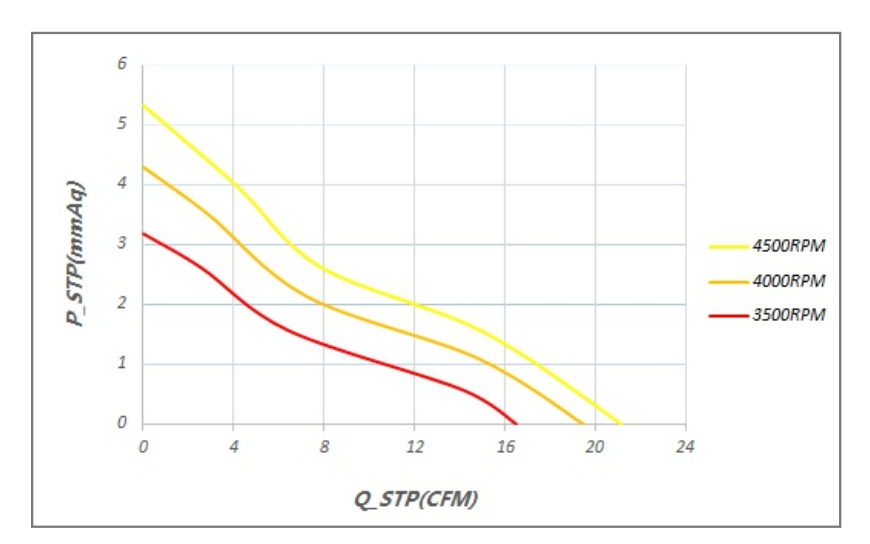

| Total Airflow:16.52-21.15CFM
| Air Pressure: 3.18-5.32mmH2O
| Total Noise: 33-40dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 60*60*20-LO5 | 5 | 5 | 0.12 | 0.60 | 3500 | 0.47 | 16.52 | 3.18 | 0.13 | 33.5 |
| 60*60*20-L12 | 12 | 12 | 0.05 | 0.60 | ||||||
| 60*60*20-L24 | 24 | 24 | 0.03 | 0.72 | ||||||
| 60*60*20-M12 | 12 | 12 | 0.07 | 0.84 | 4000 | 0.55 | 19.47 | 4.29 | 0.17 | 36.8 |
| 60*60*20-M24 | 24 | 24 | 0.04 | 0.96 | ||||||
| 60*60*20-H12 | 12 | 12 | 0.10 | 1.20 | 4500 | 0.60 | 21.15 | 5.32 | 0.21 | 40.9 |
| 60*60*20-H24 | 24 | 24 | 0.05 | 1.20 | ||||||
