dc brushless fan , Cooling fan , 5v fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

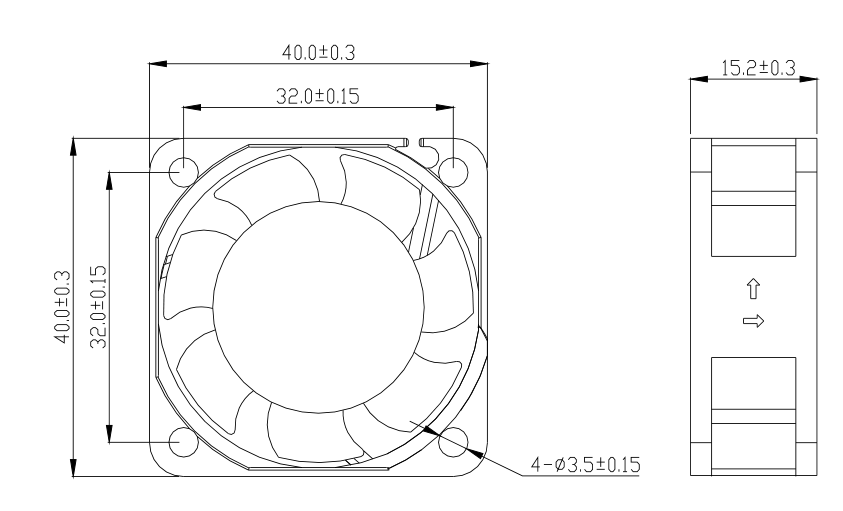

| Size: 40*40*15mm Series
| Voltage: DC 5V-24V
| Current: 0.03-0.21Amp
| Speed: 4000-10000rpm

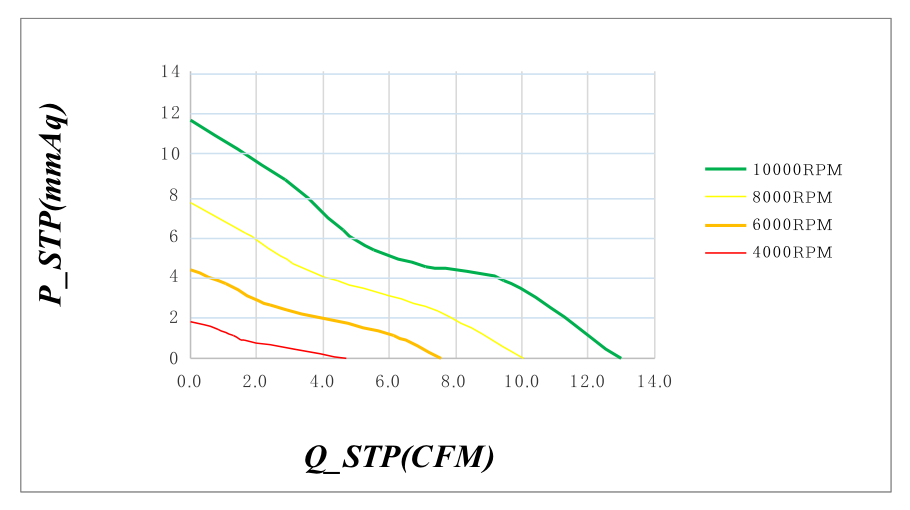

| Total Airflow:4.72-13.01CFM
| Air Pressure: 1.18-11.58mmH2O
| Total Noise: 23-40dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 40*40*15-LO5 | 5 | 3.6to6.8 | 0.12 | 0.60 | 4000 | 0.13 | 4.72 | 1.81 | 0.07 | 23.8 |
| 40*40*15-L12 | 12 | 7.0to13.5 | 0.05 | 0.60 | ||||||
| 40*40*15-L24 | 24 | 18to26.5 | 0.03 | 0.72 | ||||||
| 40*40*15-M05 | 5 | 3.6to6.8 | 0.21 | 1.05 | 6000 | 0.21 | 7.56 | 4.31 | 0.17 | 29.5 |
| 40*40*15-M12 | 12 | 7.0to13.5 | 0.10 | 1.20 | ||||||
| 40*40*15-M24 | 24 | 18to26.5 | 0.05 | 1.20 | ||||||
| 40*40*15-H12 | 12 | 7.0to13.5 | 0.14 | 1.68 | 8000 | 0.28 | 10.06 | 7.59 | 0.30 | 37.7 |
| 40*40*15-H24 | 24 | 18to26.5 | 0.07 | 1.68 | ||||||
| 40*40*15-H12-HH | 12 | 7.Oto13.5 | 0.19 | 2.28 | 10000 | 0.37 | 13.01 | 11.58 | 0.46 | 41.0 |
| 40*40*15-H24-HH | 24 | 18to26.5 | 0.10 | 2.40 | ||||||
