Frameless dc coolingfan , Brushless axial DC fan , Mini DC fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 Material.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

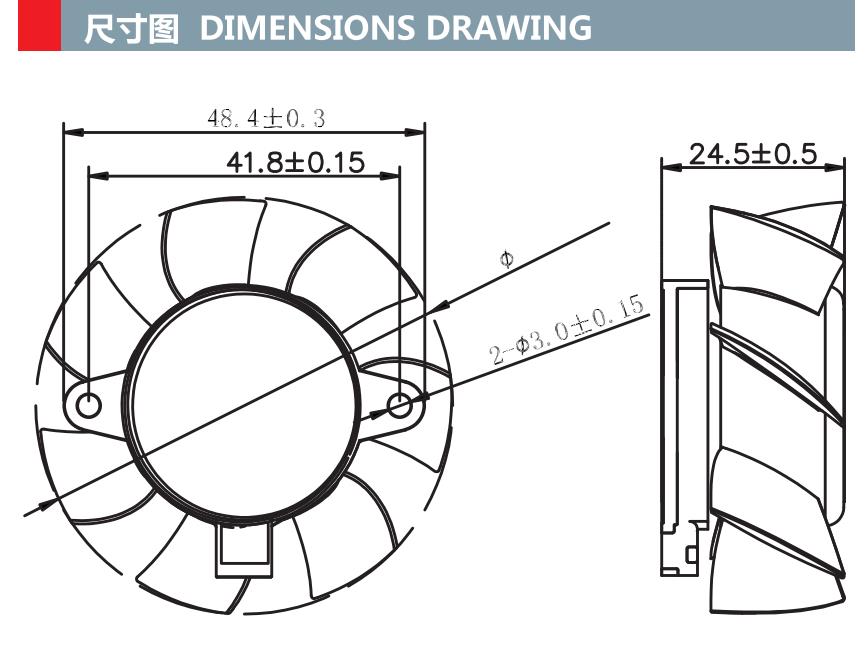

| Size: 60*60*25mm Series
| Voltage: DC 5V-24V
| Current: 0.03-0.48 Amp
| Speed: 3000-6000rpm
| Airflow: 15.36-30.72CFM
| Air Pressure: 5.72-11.44mmH2O
| Total Noise: 26.5-40.3dBA

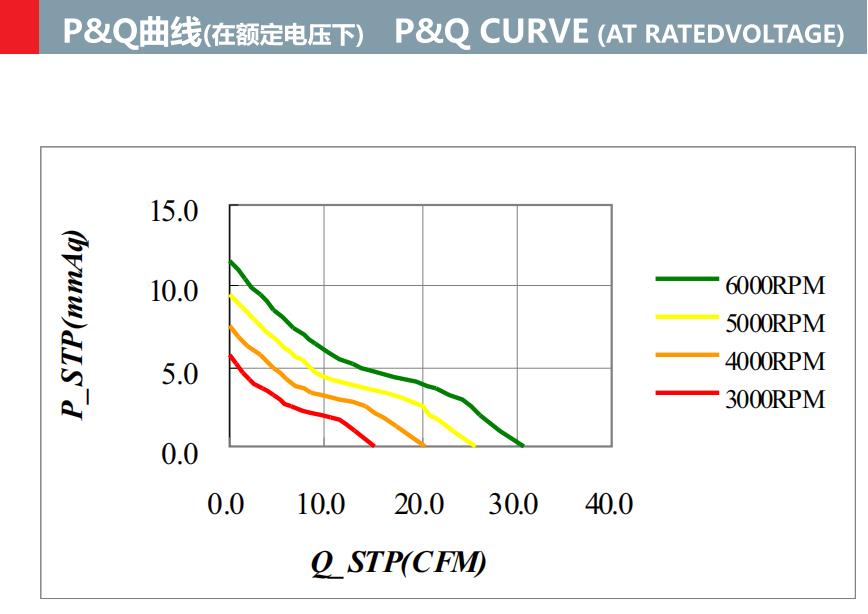

| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY6025L05 | 5 | 3.6to6.8 | 0.16 | 0.80 | 3000 | 0.44 | 15.36 | 5.72 | 0.23 | 26.5 | |
| YY6025L12 | 12 | 7.0to13.5 | 0.06 | 0.72 | |||||||
| YY6025L24 | 24 | 18to26.5 | 0.03 | 0.72 | |||||||
| YY6025M05 | 5 | 3.6to6.8 | 0.34 | 1.70 | 4000 | 0.58 | 20.48 | 7.63 | 0.3 | 33.2 | |
| YY6025M12 | 12 | 7.0to13.5 | 0.14 | 1.68 | |||||||
| YY6025M24 | 24 | 18to26.5 | 0.06 | 1.54 | |||||||
| YY6025H05 | 5 | 3.6to6.8 | 0.7 | 3.50 | 5000 | 0.73 | 25.6 | 9.53 | 0.38 | 38.4 | |
| YY6025H12 | 12 | 7.0to13.5 | 0.28 | 3.36 | |||||||
| YY6025H24 | 24 | 18to26.5 | 0.14 | 3.36 | |||||||
| YY6025H05-HH | 5 | 3.6to6.8 | 1.22 | 6.1 | 6000 | 0.87 | 30.72 | 11.44 | 0.45 | 40.3 | |
| YY6025H12-HH | 12 | 7.0to13.5 | 0.48 | 5.6 | |||||||
| YY6025H24-HH | 24 | 18to26.5 | 0.25 | 6.0 | |||||||
