Frameless dc coolingfan , Brushless axial DC fan , Mini DC fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 Material.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

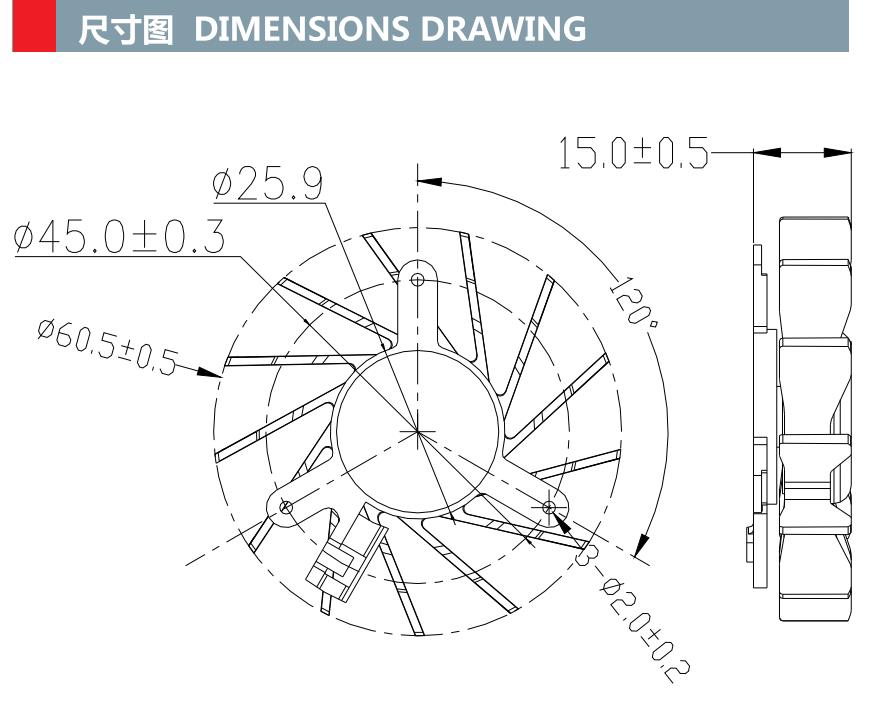

| Size: 60*60*15mm Series
| Voltage: DC 5V-24V
| Current: 0.05-0.4 Amp
| Speed: 2000-3000rpm
| Airflow: 4.64-6.95CFM
| Air Pressure: 0.38-0.85mmH2O
| Total Noise: 22.5-31.3dBA
| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY6015L05 | 5 | 3.6to6.8 | 0.18 | 0.90 | 2000 | 0.13 | 4.64 | 0.38 | 0.015 | 22.5 | |
| YY6015L12 | 12 | 7.0to13.5 | 0.10 | 1.20 | |||||||
| YY6015L24 | 24 | 18to26.5 | 0.05 | 1.20 | |||||||
| YY6015M05 | 5 | 3.6to6.8 | 0.23 | 1.15 | 2500 | 0.16 | 5.79 | 0.59 | 0.023 | 27.4 | |
| YY6015M12 | 12 | 7.0to13.5 | 0.11 | 1.32 | |||||||
| YY6015M24 | 24 | 18to26.5 | 0.05 | 1.20 | |||||||
| YY6015H05 | 5 | 3.6to6.8 | 0.40 | 2.00 | 3000 | 0.20 | 6.95 | 0.85 | 0.033 | 31.3 | |
| YY6015H12 | 12 | 7.0to13.5 | 0.20 | 2.40 | |||||||
| YY6015H24 | 24 | 18to26.5 | 0.09 | 2.16 | |||||||
