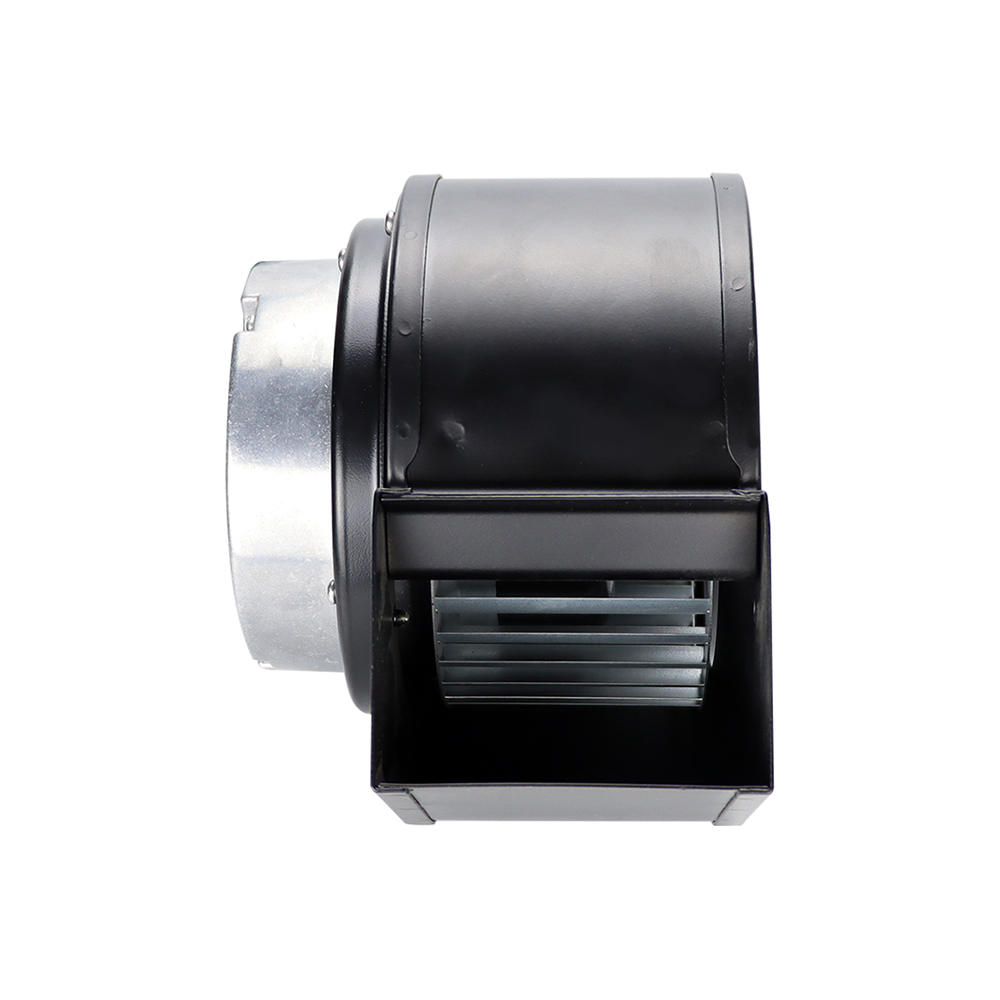

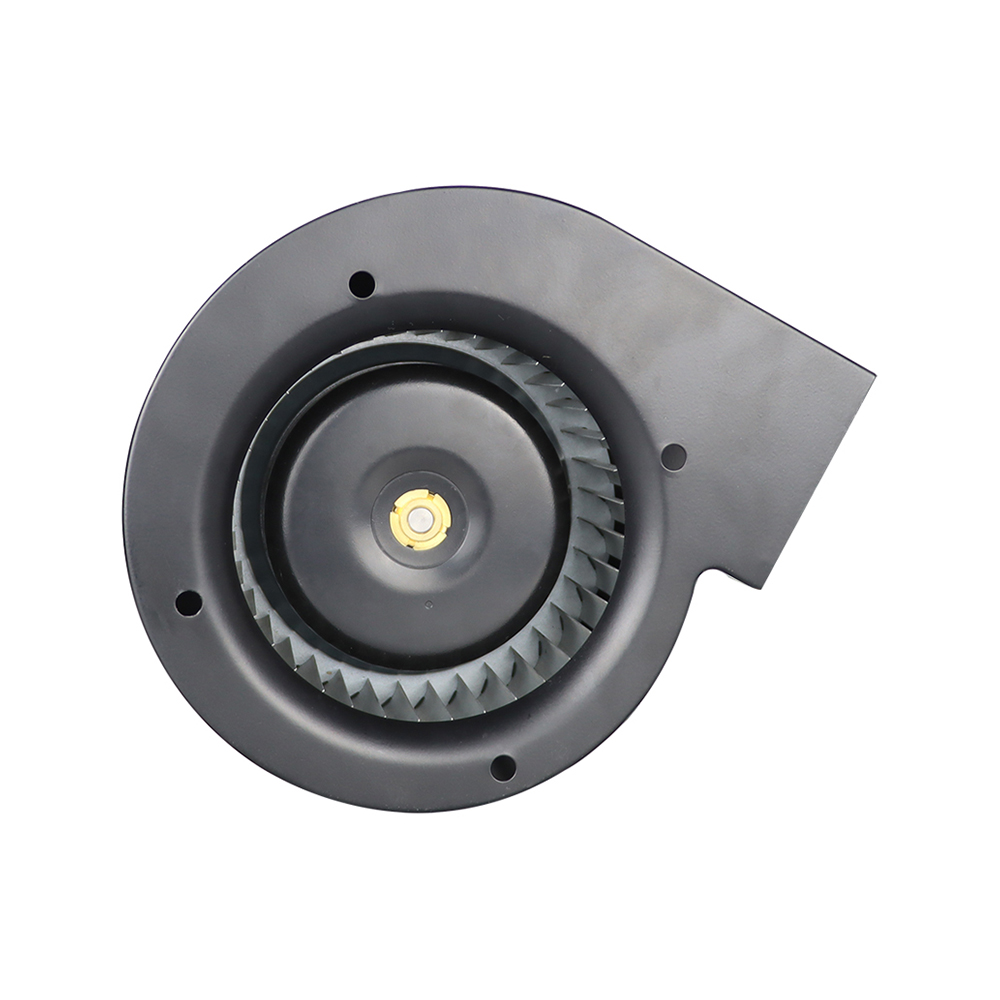

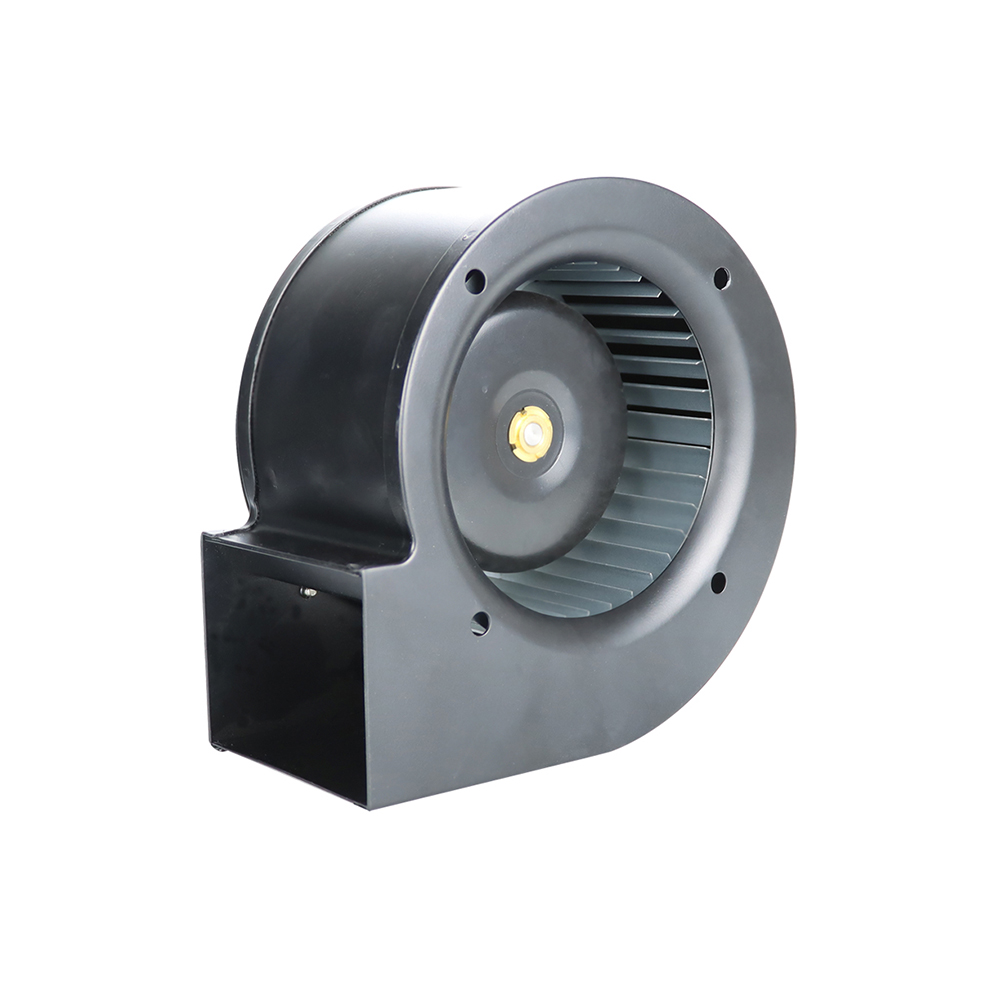

13392 DC Blower fan,Blower DC Ventilation fan 133*133*92mm
*Designed for Industrial projects that requires cooling or ventilation;
*High efficiency and low power consumption.
*Bearing Type: Hydraulic/Ball Bearing .
*Full Certification included CE/UL/TUV.
*Customizable Wire and Connectors.
Download
3D Model
SHARE:
Product details:
| Size: 133*133*92mm Series
| Voltage: DC 24V/48V
| Current:2.5-4.5Amp
| Speed: 2800rpm
| Total Airflow: 269CFM
| Air Pressure: 71mmH2O
| Total Noise: 71.1dBA
| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY133H24 | 24 | 18to26.5 | 4.5 | 108 | 2800 | 457.30 | 269 | 71 | 2.80 | 71.1 | |
| YY133H48 | 48 | 36to54 | 2.5 | 120 | |||||||
