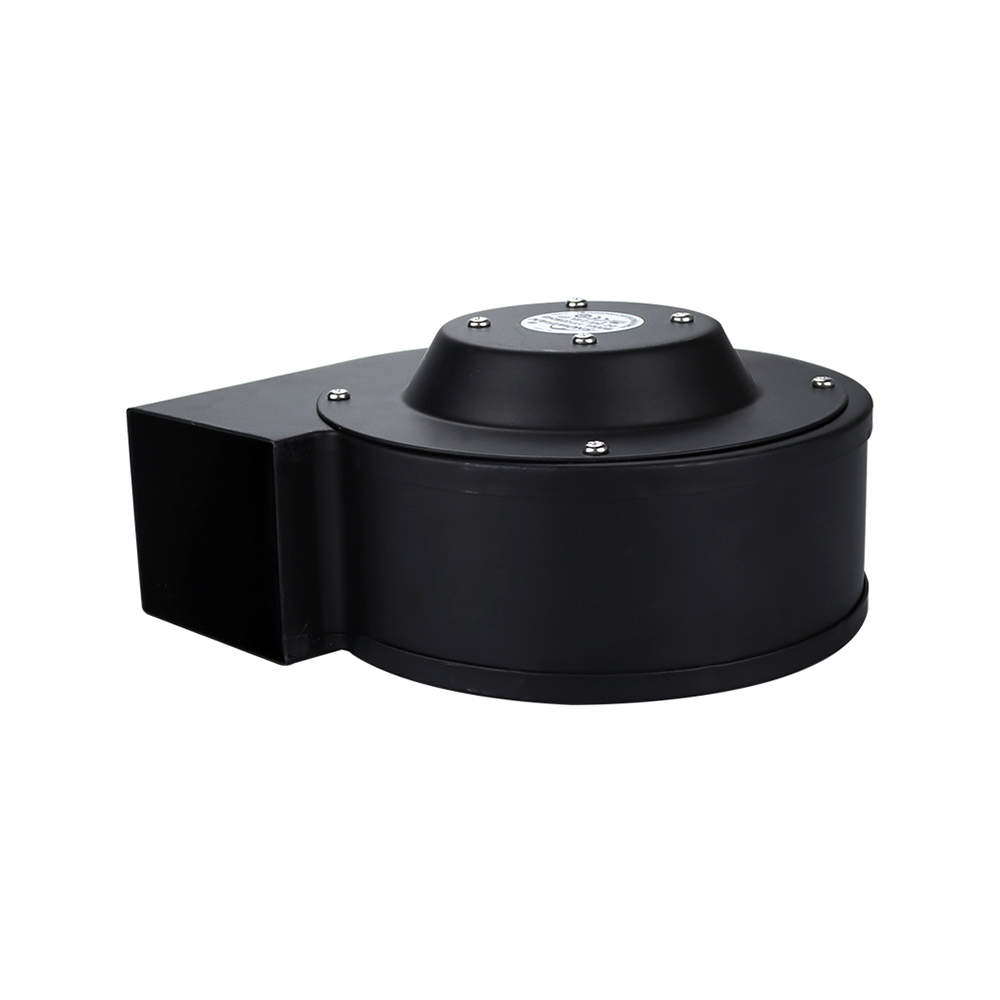

13372 DC Blower fan,Blower DC Ventilation fan 133*133*72mm
*Designed for Industrial projects that requires cooling or ventilation;
*High efficiency and low power consumption.
*Bearing Type: Hydraulic/Ball Bearing .
*Full Certification included CE/UL/TUV.
*Customizable Wire and Connectors.
Download
3D Model
SHARE:
Product details:
| Size: 133*133*72mm Series
| Voltage: DC 24V/48V
| Current: 2-3.8Amp
| Speed: 2400rpm
| Total Airflow: 163.03CFM
| Air Pressure: 54.26mmH2O
| Total Noise: 69.2dBA
| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY133H24 | 24 | 18to26.5 | 3.8 | 91.2 | 2400 | 277.151 | 163.03 | 54.26 | 2.14 | 69.2 | |
| YY133H48 | 48 | 36to54 | 2.0 | 96.0 | |||||||
