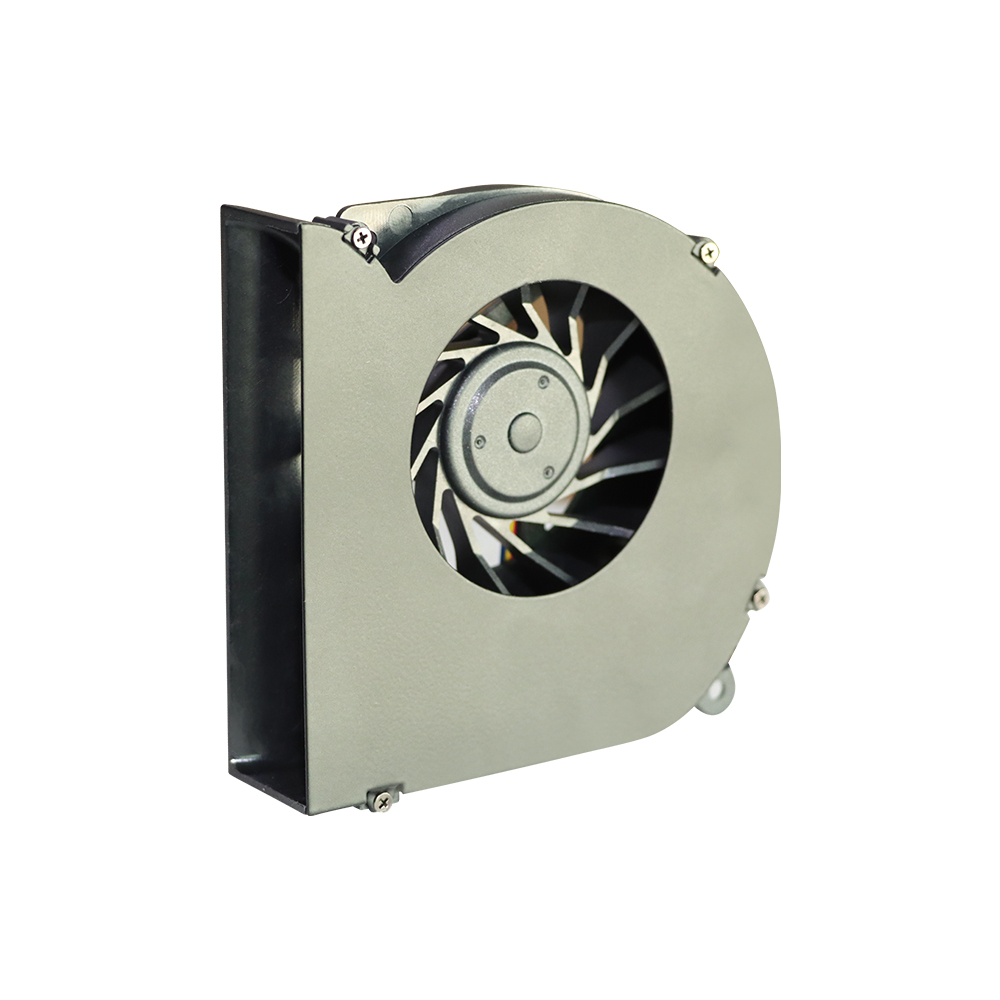

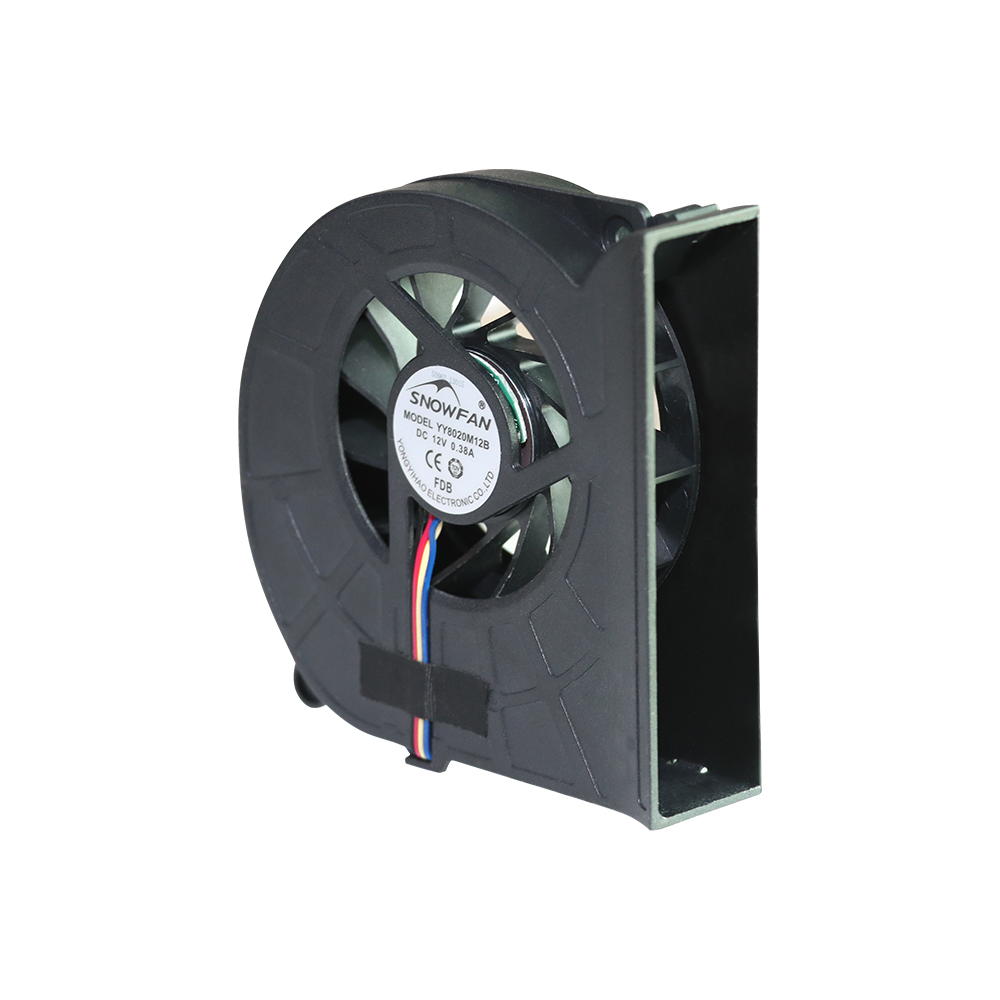

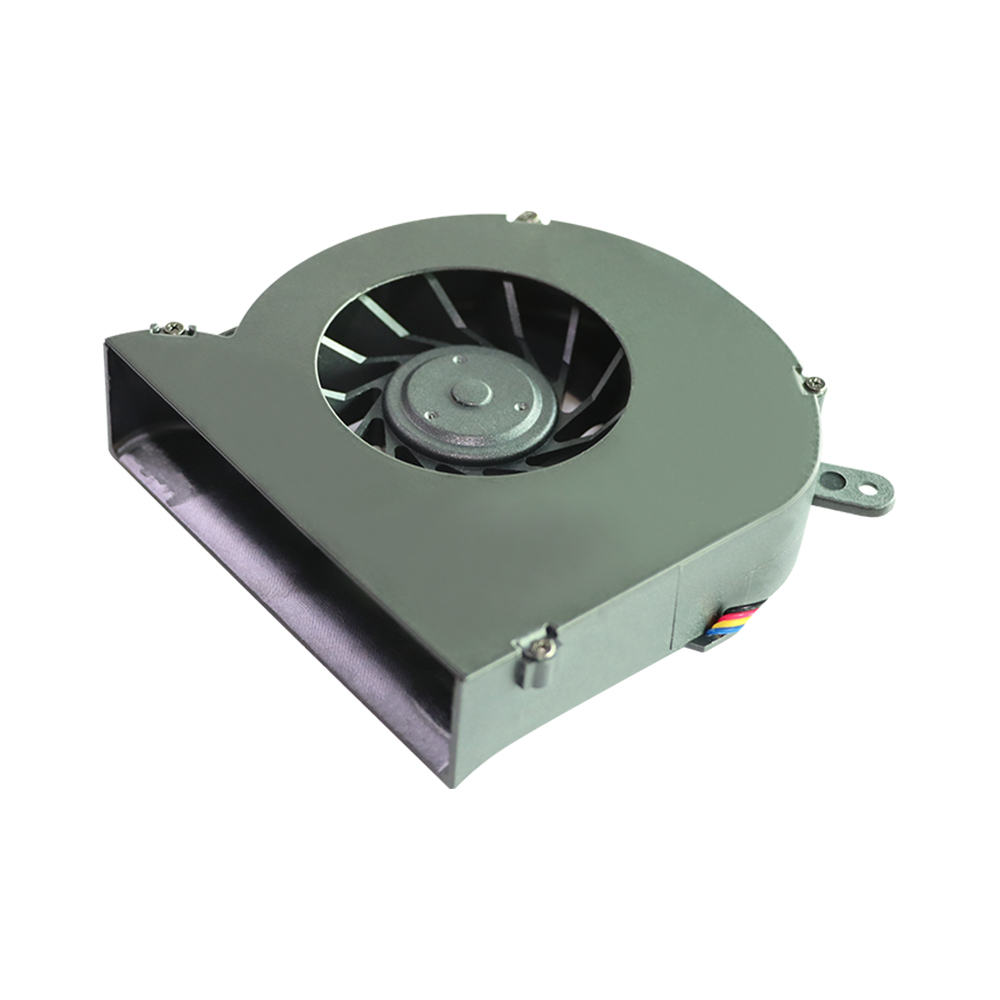

8020 DC Axial fan,Brushless blower DC fan 80*80*20mm
*Designed for projects that requires cooling or ventilation;
*High efficiency and low power consumption.
*Bearing Type: Hydraulic/Ball Bearing .
*Full Certification included CE/UL/TUV.
*Customizable Wire and Connectors.
Download
3D Model
SHARE:
Product details:

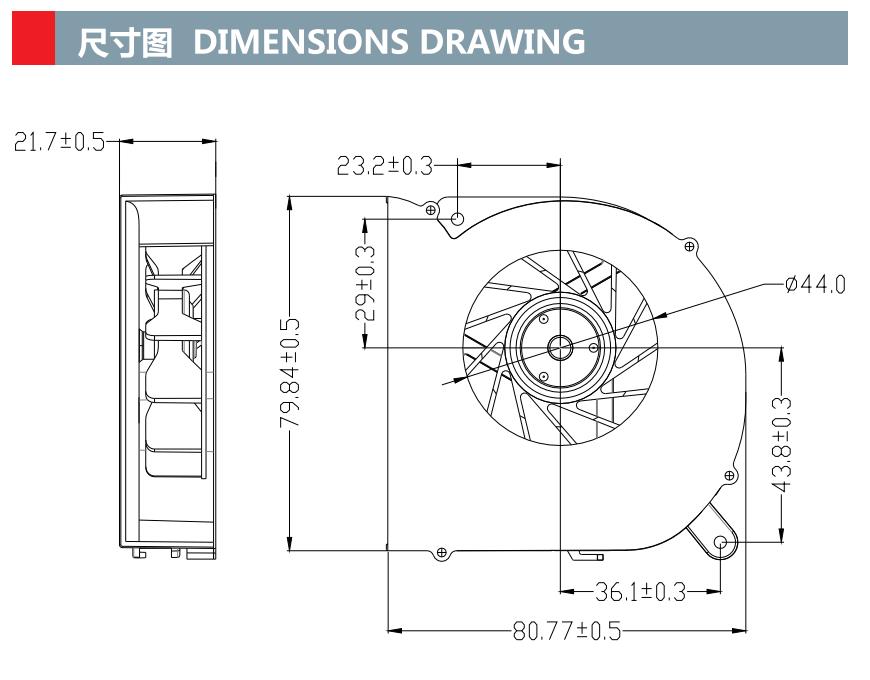

| Size: 80*80*20mm Series
| Voltage: DC 5V/12V
| Current: 0.09-0.32Amp
| Speed: 2000-4000rpm
| Total Airflow: 7.01-14.28CFM

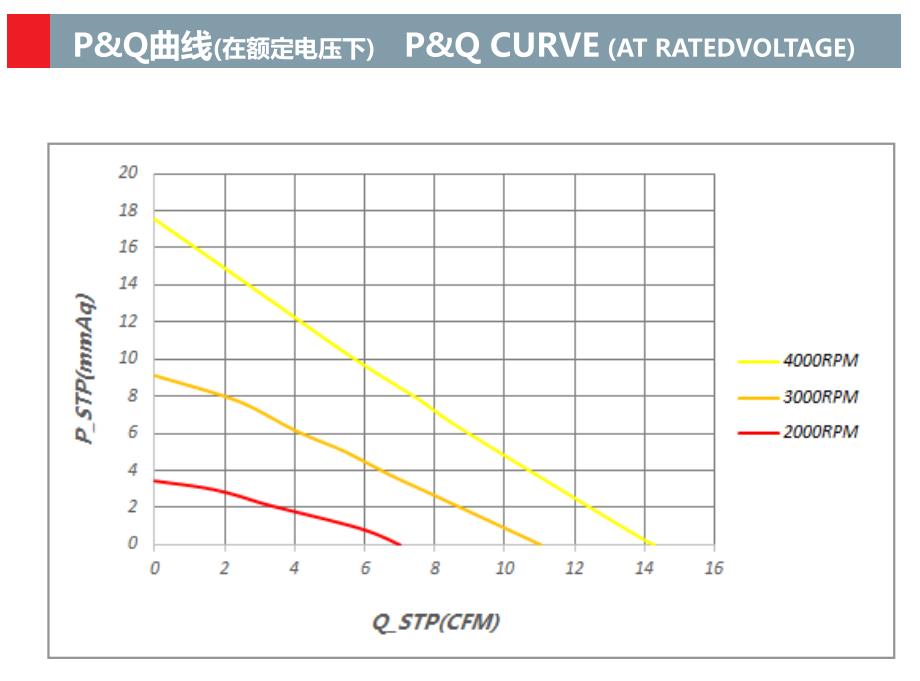

| Air Pressure: 3.44-17.54mmH2O
| Total Noise: 21.5-42dBA
| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY8020L05 | 05 | 3.6to6.8 | 0.22 | 1.1 | 2000 | 0.20 | 7.01 | 3.44 | 0.14 | 21.5 | |
| YY8020L12 | 12 | 7.0to13.5 | 0.09 | 1.08 | |||||||
| YY8020M05 | 05 | 3.6to6.8 | 0.32 | 1.60 | 3000 | 0.31 | 11.04 | 9.12 | 0.36 | 33.3 | |
| YY8020M12 | 12 | 7.0to13.5 | 0.13 | 1.56 | |||||||
| YY8020H12 | 12 | 7.0to13.5 | 0.22 | 2.64 | 4000 | 0.40 | 14.28 | 17.54 | 0.69 | 42 | |
