8015 DC Axial fan,Brushless blower DC fan 80*80*15mm
*Designed for projects that requires cooling or ventilation;
*High efficiency and low power consumption.
*Bearing Type: Hydraulic/Ball Bearing .
*Full Certification included CE/UL/TUV.
*Customizable Wire and Connectors.
Download
3D Model
SHARE:
Product details:
| Size: 80*80*15mm Series
| Voltage: DC 5V/12V
| Current: 0.12-0.41Amp
| Speed: 2500-3500rpm
| Total Airflow: 9.73-11.71CFM
| Air Pressure: 6.69-11.94mmH2O
| Total Noise: 27.6-37.6dBA

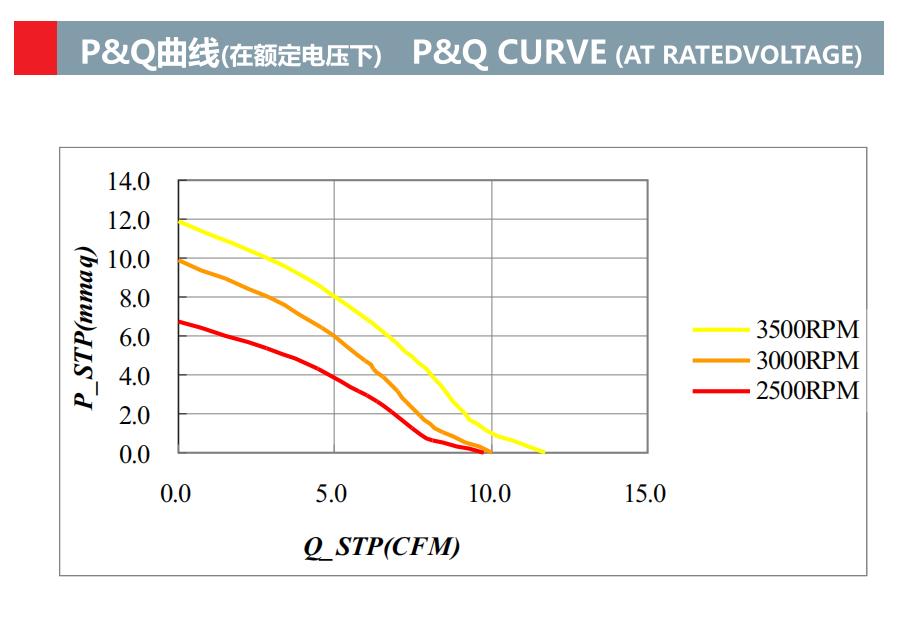

| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY8015L05 | 05 | 3.6to5.4 | 0.28 | 1.4 | 2500 | 0.28 | 9.73 | 6.69 | 0.26 | 27.6 | |
| YY8015L12 | 12 | 7.0to13.5 | 0.12 | 1.44 | |||||||
| YY8015M05 | 05 | 3.6to5.4 | 0.36 | 1.80 | 3000 | 0.29 | 10.05 | 9.92 | 0.39 | 32.5 | |
| YY8015M12 | 12 | 7.0to13.5 | 0.15 | 1.80 | |||||||
| YY8015H05 | 05 | 3.6to5.4 | 0.41 | 2.05 | 3500 | 0.33 | 11.71 | 11.94 | 0.47 | 37.6 | |
| YY8015H12 | 12 | 7.0to13.5 | 0.17 | 2.05 | |||||||
