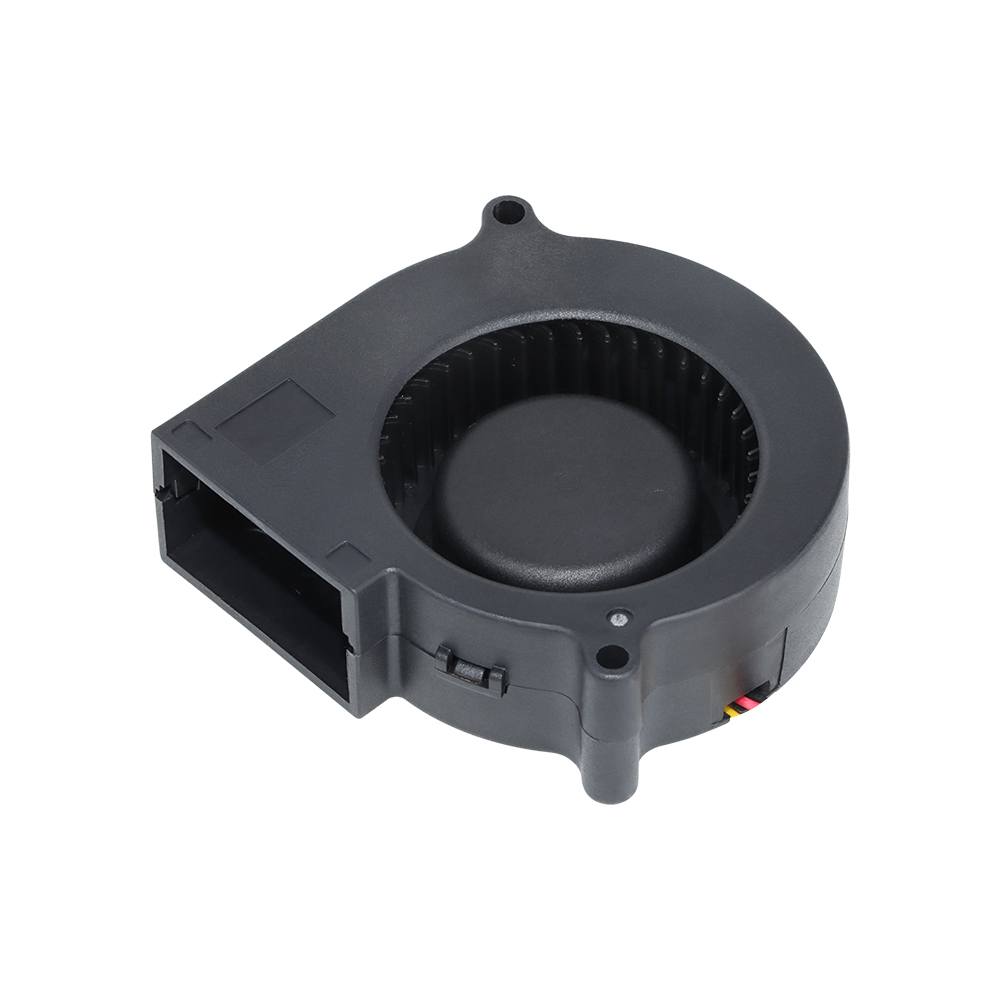

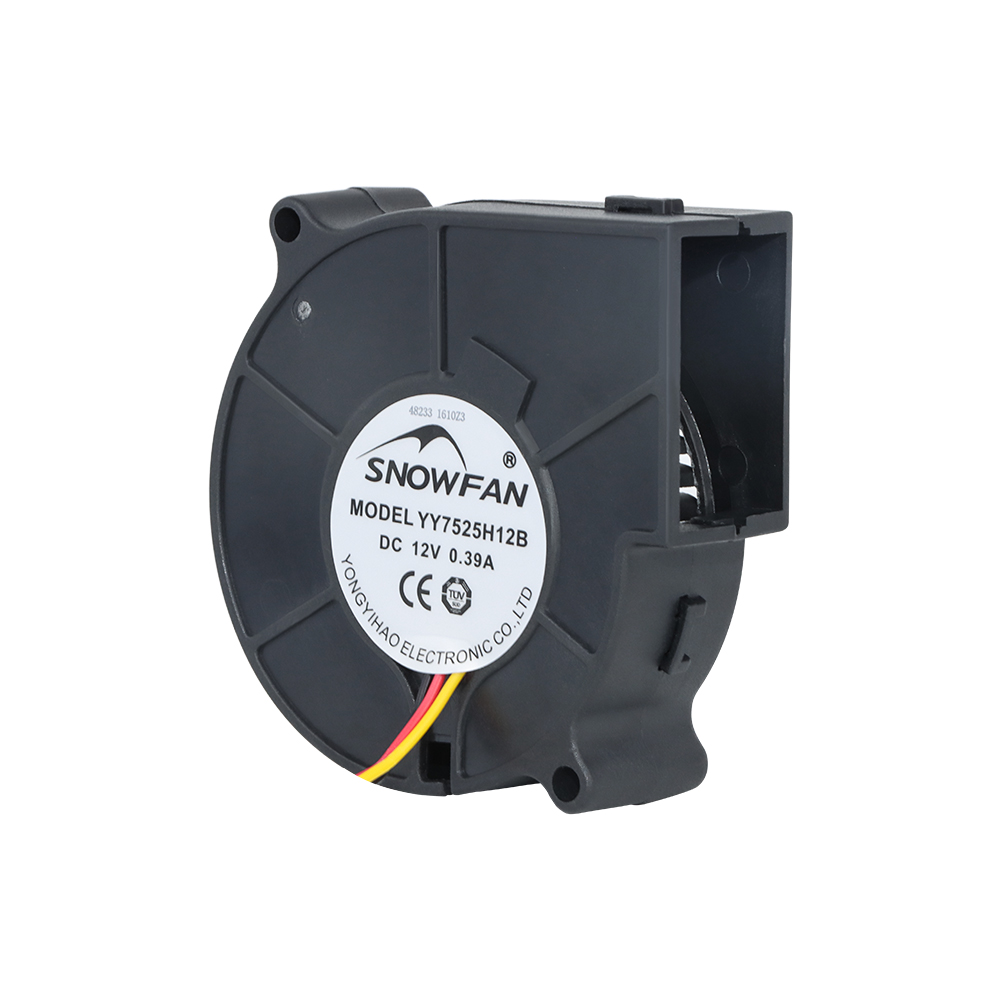

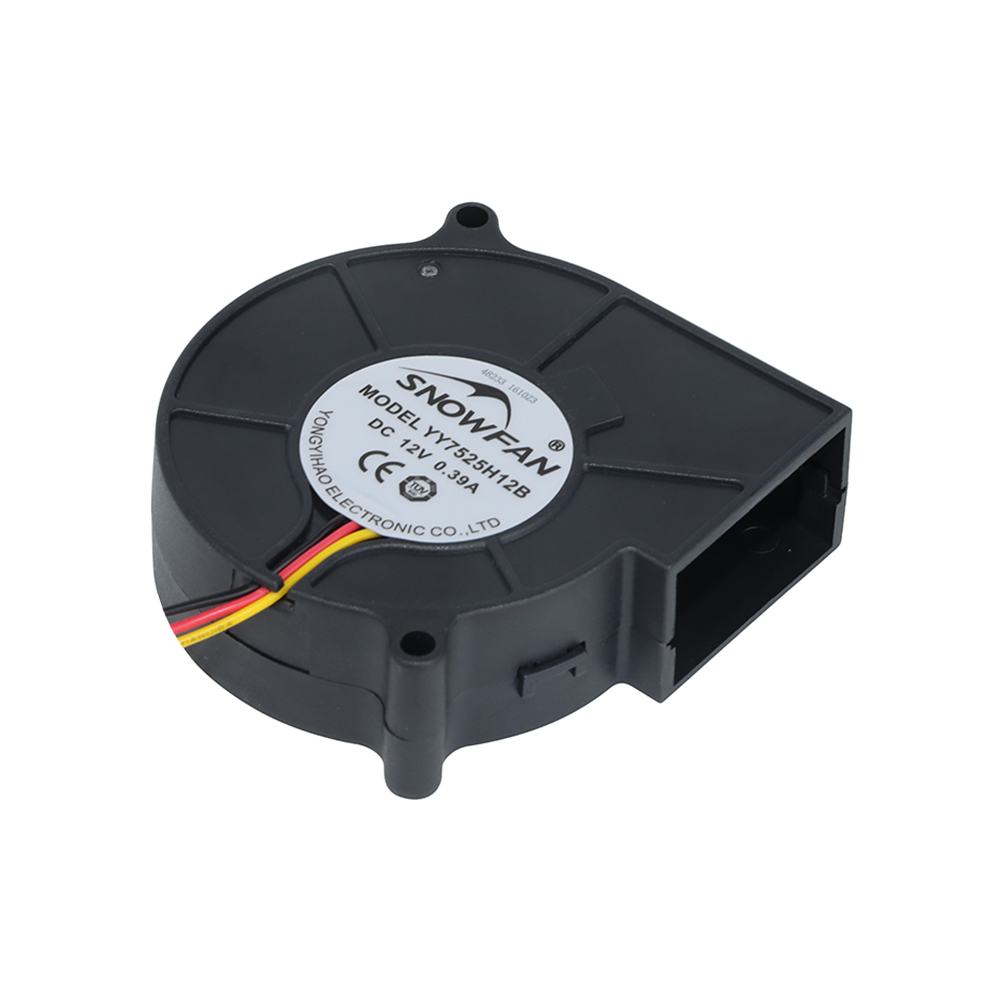

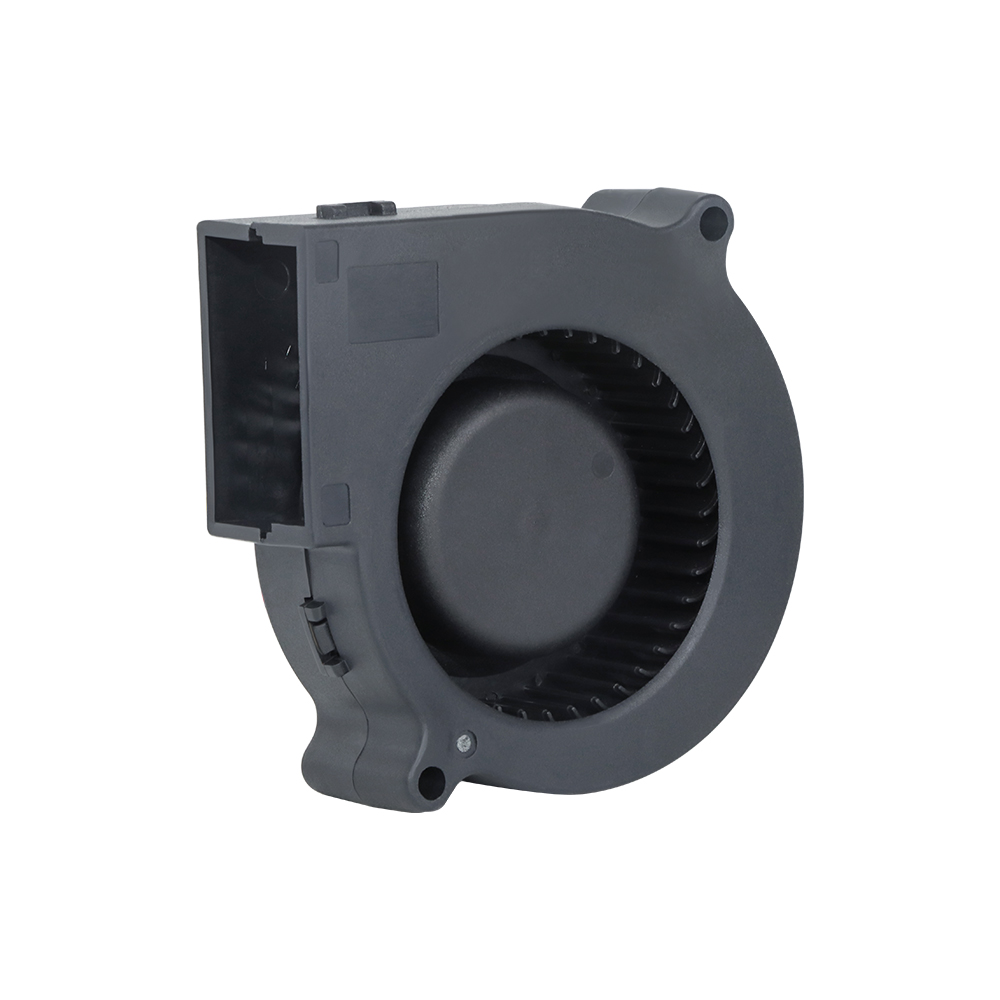

7525 DC Axial fan,Brushless blower DC fan 75*75*25mm
*Designed for projects that requires cooling or ventilation;
*High efficiency and low power consumption.
*Bearing Type: Hydraulic/Ball Bearing .
*Full Certification included CE/UL/TUV.
*Customizable Wire and Connectors.
Download
3D Model
SHARE:
Product details:

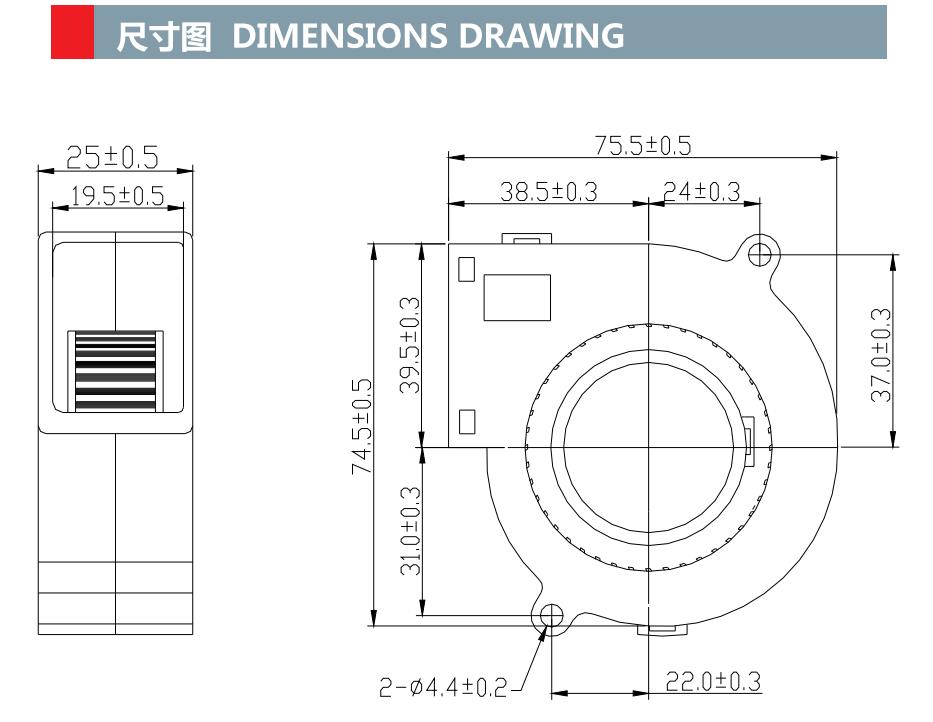

| Size: 75*75*25mm Series
| Voltage: DC 5V/12V/24V
| Current: 0.08-0.42Amp
| Speed: 2000-3500rpm
| Total Airflow: 5.17-9.52CFM
| Air Pressure: 2.45-10.98mmH2O
| Total Noise: 25.6-41.6dBA
| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY7525L12 | 12 | 7.0to13.5 | 0.11 | 1.32 | 2000 | 0.15 | 5.17 | 2.45 | 0.10 | 25.6 | |
| YY7525L24 | 24 | 18to26.5 | 0.08 | 1.92 | |||||||
| YY7525M12 | 12 | 7.0to13.5 | 0.22 | 2.64 | 2500 | 0.19 | 6.74 | 4.58 | 0.18 | 32.3 | |
| YY7525M24 | 24 | 18to26.5 | 0.11 | 2.64 | |||||||
| YY7525H12 | 12 | 7.0to13.5 | 0.26 | 3.12 | 3000 | 0.23 | 8.18 | 7.29 | 0.29 | 37.6 | |
| YY7525H24 | 24 | 18to26.5 | 0.14 | 3.36 | |||||||
| YY7525H12-HH | 12 | 7.0to13.5 | 0.42 | 5.04 | 3500 | 0.27 | 9.52 | 10.98 | 0.43 | 41.6 | |
| YY7525H24-HH | 24 | 18to26.5 | 0.23 | 5.52 | |||||||
