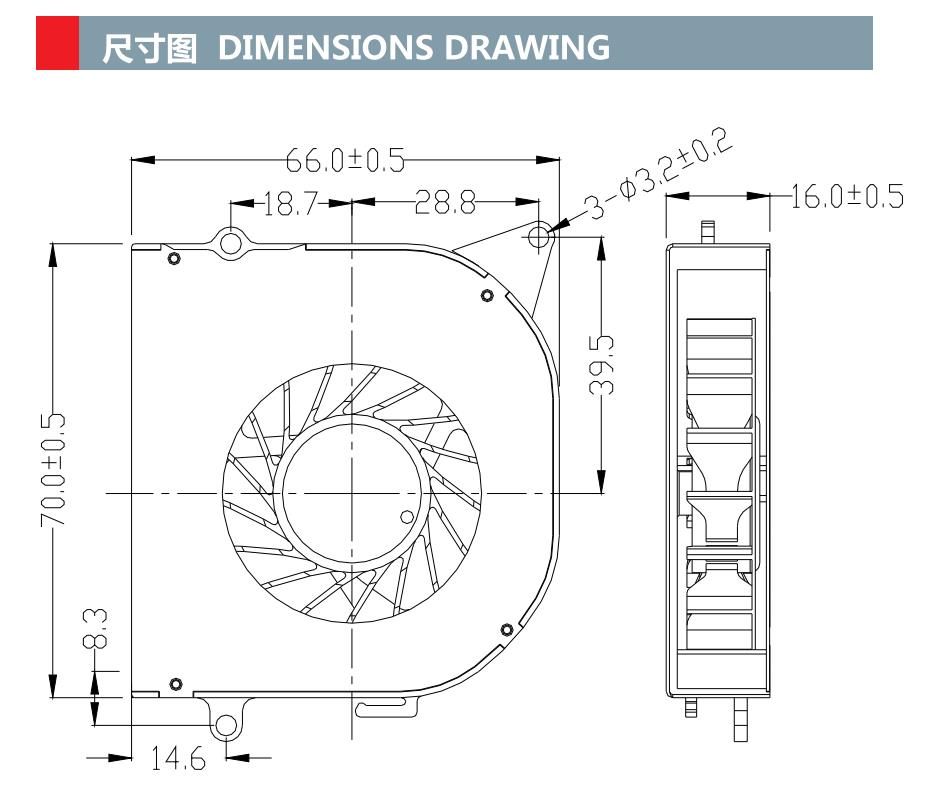

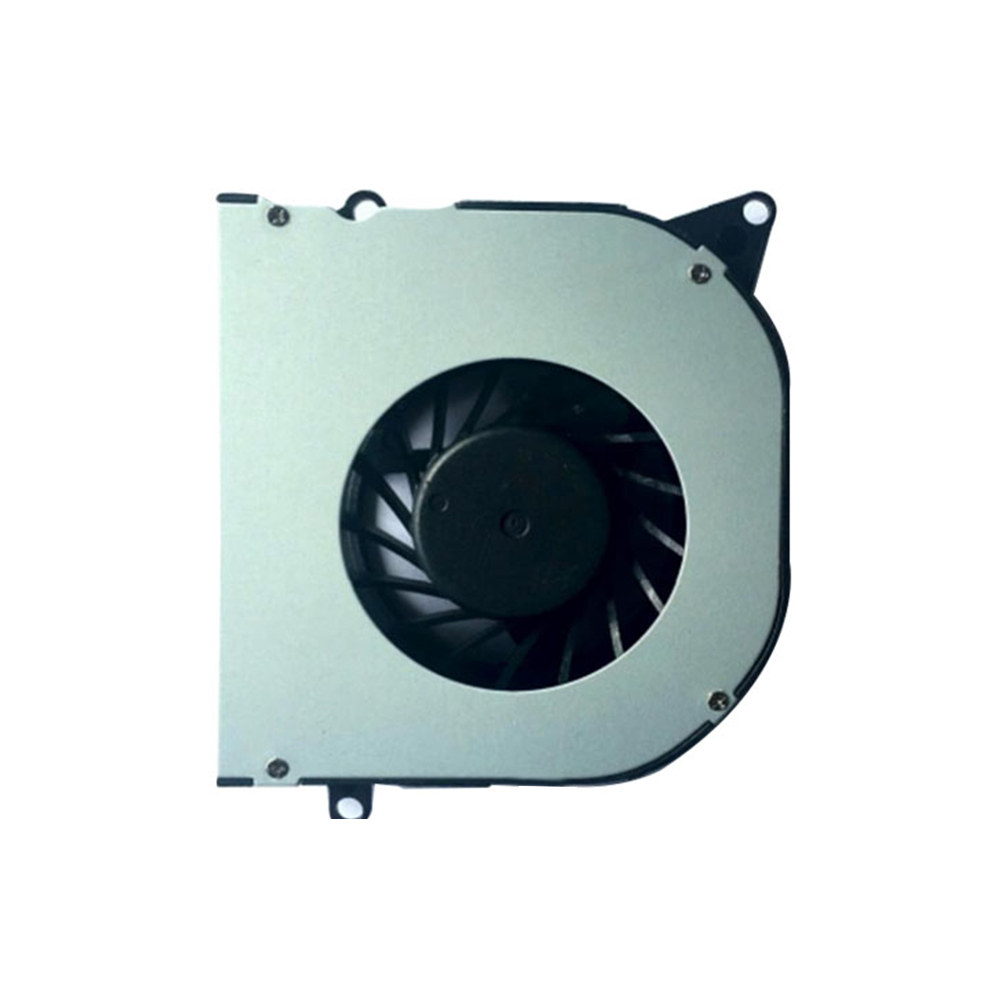

7016 DC Axial fan,Brushless blower DC fan 70*70*16mm
*Designed for projects that requires cooling or ventilation;
*High efficiency and low power consumption.
*Bearing Type: Hydraulic/Ball Bearing .
*Full Certification included CE/UL/TUV.
*Customizable Wire and Connectors.
Download
3D Model
SHARE:
Product details:
| Size: 70*70*16mm Series
| Voltage: DC 5V/12V/24V
| Current: 0.06-0.5Amp
| Speed: 3000-4800rpm
| Total Airflow: 7.39-11.8CFM
| Air Pressure: 8.79-24.8mmH2O
| Total Noise: 34.7-44.4dBA

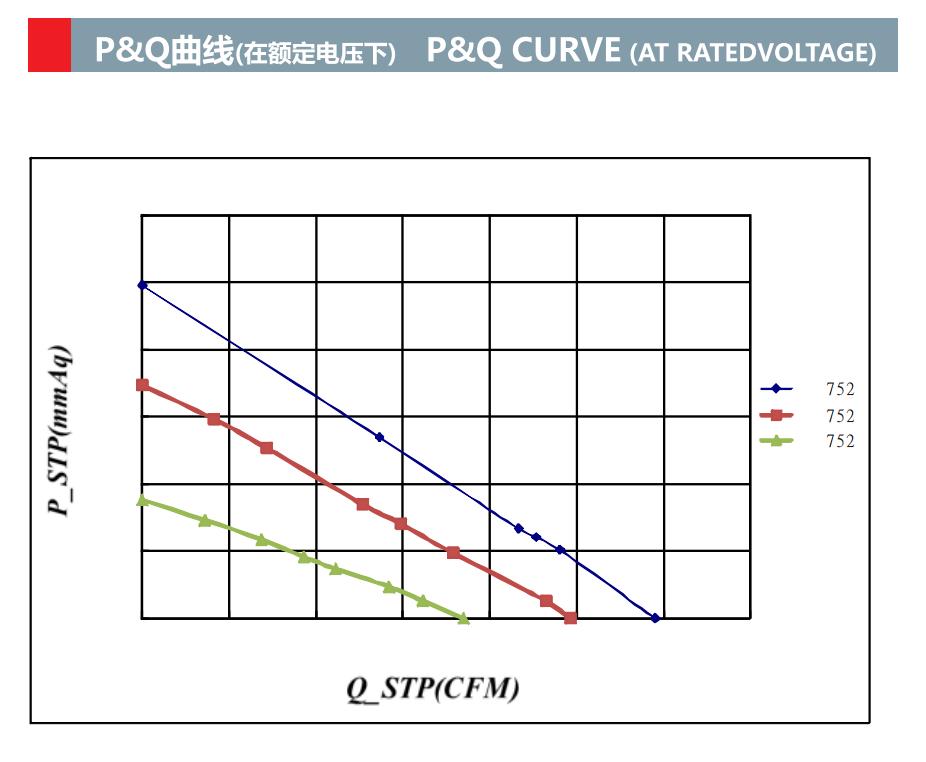

| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY7016L05 | 5 | 4.3to5.4 | 0.25 | 1.25 | 3000 | 0.21 | 7.39 | 8.79 | 0.35 | 34.7 | |
| YY7016L12 | 12 | 7.0to13.5 | 0.12 | 1.32 | |||||||
| YY7016L24 | 24 | 18to26.5 | 0.06 | 1.44 | |||||||
| YY7016M05 | 5 | 4.3to5.4 | 0.45 | 2.25 | 4000 | 0.28 | 9.85 | 17.34 | 0.68 | 41.6 | |
| YY7016M12 | 12 | 7.0to13.5 | 0.21 | 2.52 | |||||||
| YY7016M24 | 24 | 18to26.5 | 0.10 | 2.40 | |||||||
| YY7016H05 | 5 | 4.3to5.4 | 0.50 | 2.50 | 4800 | 0.34 | 11.8 | 24.8 | 0.98 | 44.4 | |
| YY7016H12 | 12 | 7.0to13.5 | 0.28 | 3.36 | |||||||
| YY7016H24 | 24 | 18to26.5 | 0.14 | 3.36 | |||||||
