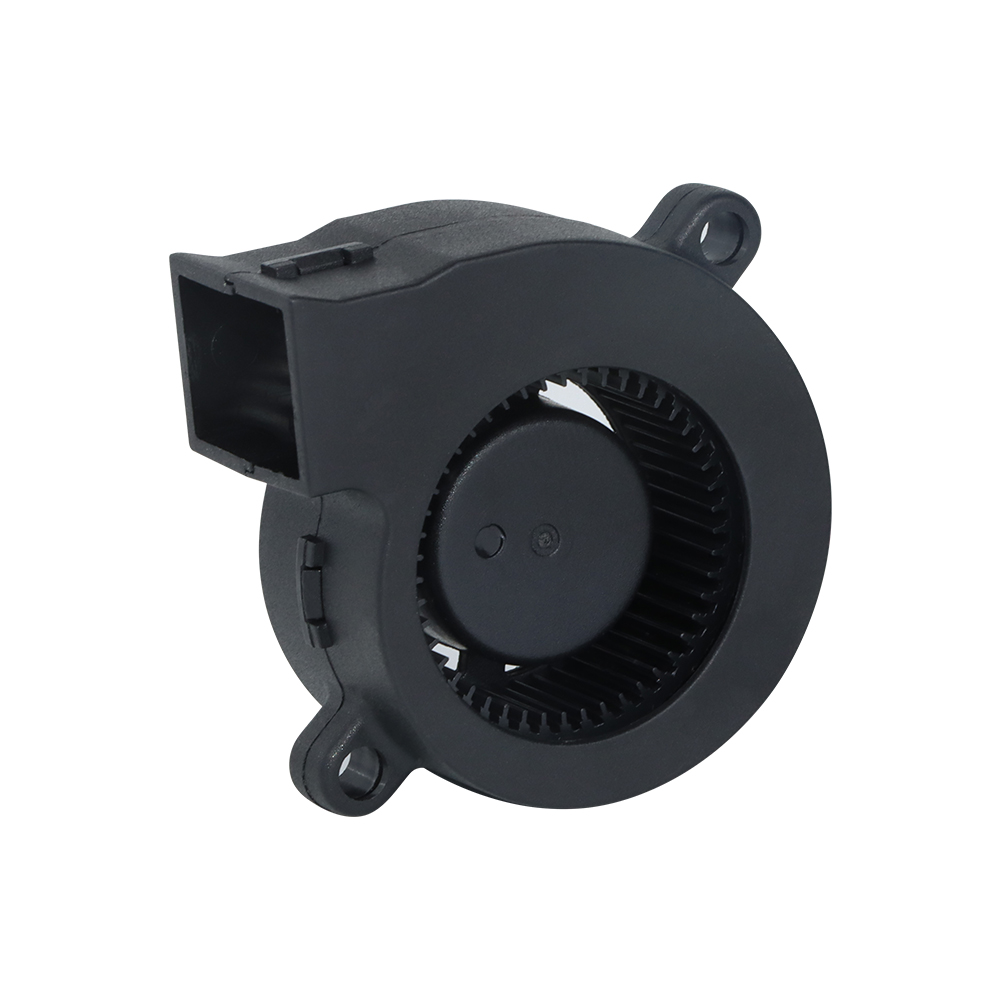

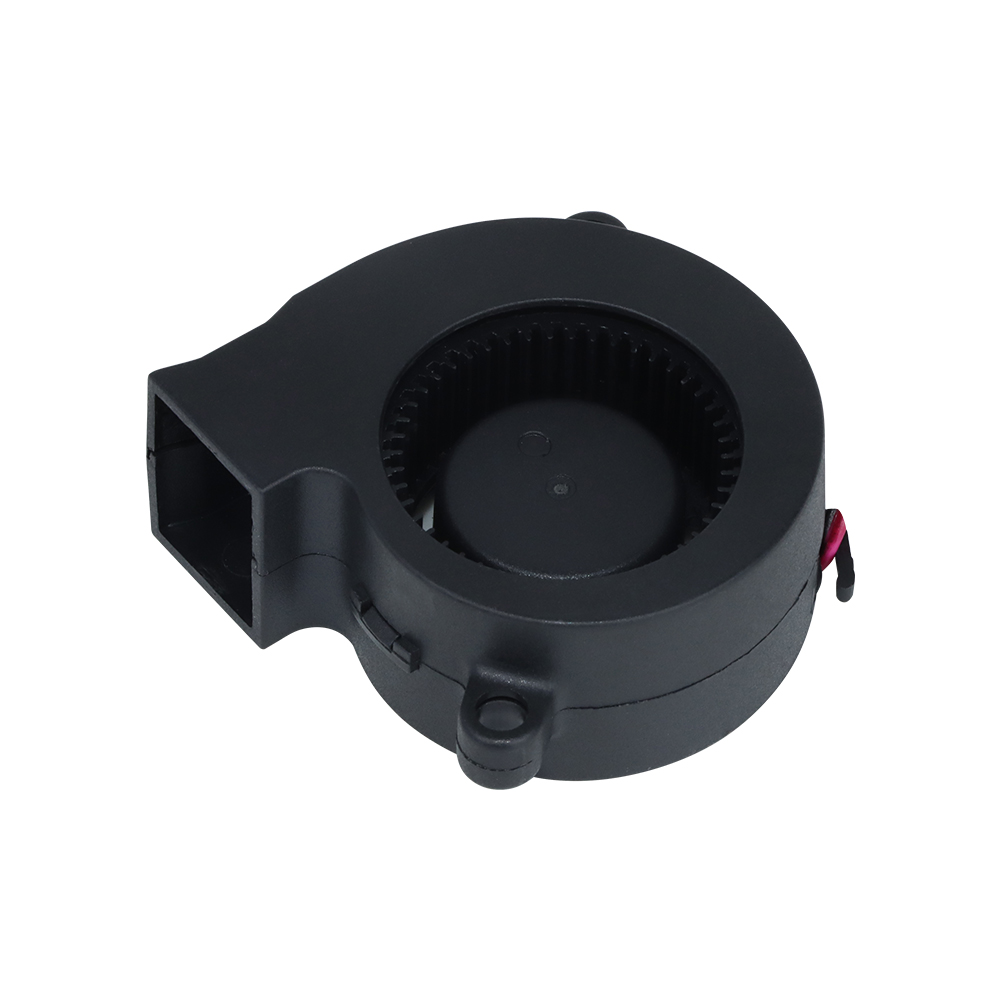

6028 DC Axial fan,Brushless blower DC fan 60*60*28mm
*Designed for projects that requires cooling or ventilation;
*High efficiency and low power consumption.
*Bearing Type: Hydraulic/Ball Bearing .
*Full Certification included CE/UL/TUV.
*Customizable Wire and Connectors.
Download
3D Model
SHARE:
Product details:

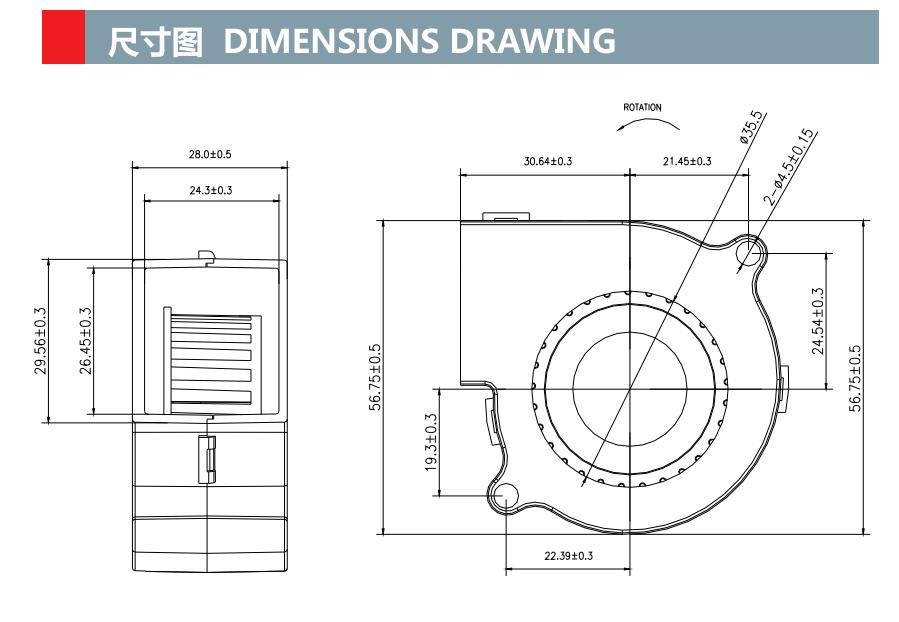

| Size: 60*60*28mm Series
| Voltage: DC 5V/12V/24V
| Current: 0.03-0.2Amp
| Speed: 2000-3500rpm
| Total Airflow: 2.93-4.46CFM
| Air Pressure: 1.49-5.44mmH2O
| Total Noise: 25.3-32.1dBA

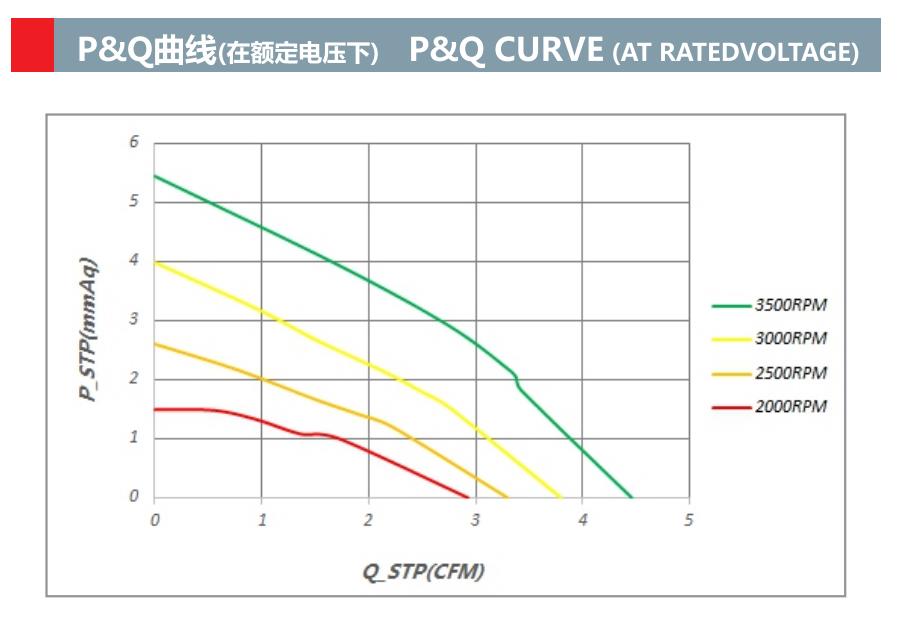

| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY6028L05 | 05 | 3.6to6.8 | 0.08 | 0.40 | 2000 | 0.08 | 2.93 | 1.49 | 0.06 | 25.3 | |
| YY6028L12 | 12 | 7.0to13.5 | 0.03 | 0.36 | |||||||
| YY6028L24 | 24 | 18to26.5 | 0.02 | 0.48 | |||||||
| YY6028M05 | 05 | 3.6to6.8 | 0.10 | 0.50 | 2500 | 0.09 | 3.3 | 2.6 | 0.10 | 26.6 | |
| YY6028M12 | 12 | 7.0to13.5 | 0.04 | 0.48 | |||||||
| YY6028M24 | 24 | 18to26.5 | 0.02 | 0.48 | |||||||
| YY6028H05 | 05 | 3.6to6.8 | 0.12 | 0.60 | 3000 | 0.11 | 3.8 | 3.98 | 0.16 | 28.6 | |
| YY6028H12 | 12 | 7.0to13.5 | 0.05 | 0.60 | |||||||
| YY6028H24 | 24 | 18to26.5 | 0.03 | 0.72 | |||||||
| YY6028H05-HH | 05 | 3.6to6.8 | 0.20 | 1.0 | 3500 | 0.13 | 4.46 | 5.44 | 0.21 | 32.1 | |
| YY6028H12-HH | 12 | 7.0to13.5 | 0.08 | 0.96 | |||||||
| YY6028H24-HH | 24 | 18to26.5 | 0.04 | 0.96 | |||||||
