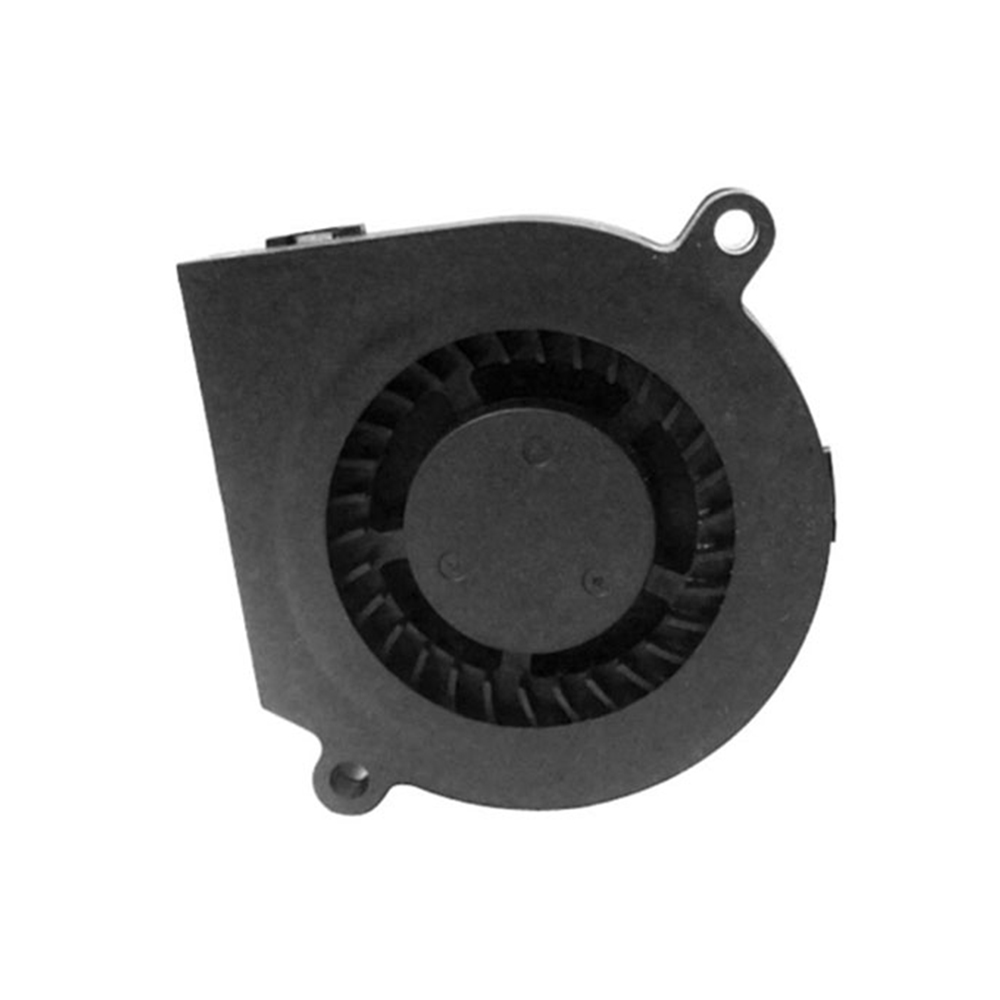

6015 DC Axial fan,Brushless blower DC fan 60*60*15mm
*Designed for projects that requires cooling or ventilation;
*High efficiency and low power consumption.
*Bearing Type: Hydraulic/Ball Bearing .
*Full Certification included CE/UL/TUV.
*Customizable Wire and Connectors.
Download
3D Model
SHARE:
Product details:

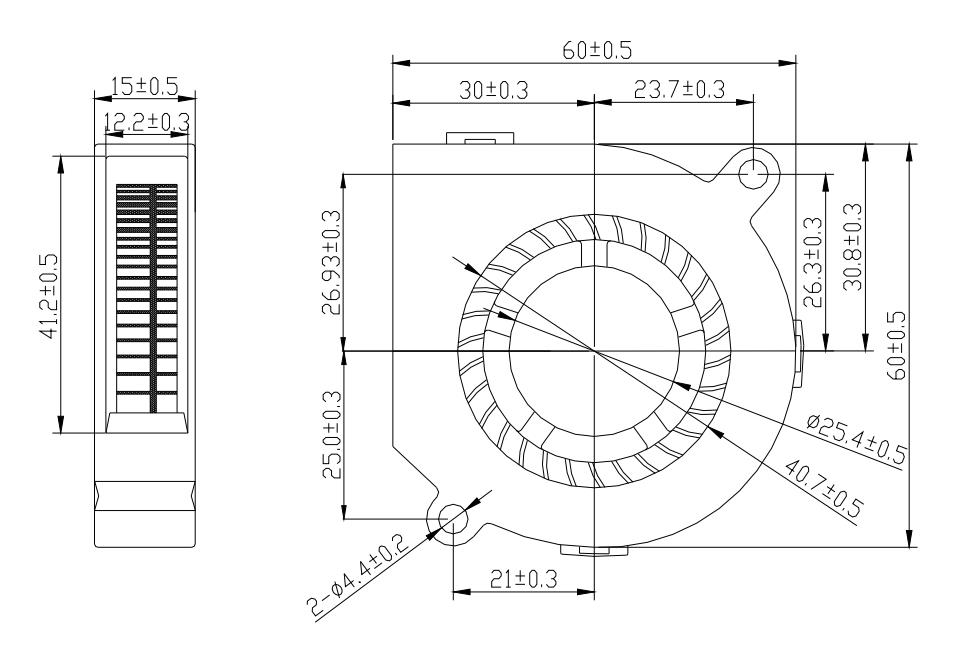

| Size: 60*60*15mm Series
| Voltage: DC 5V/12V/24V
| Current: 0.04-0.15Amp
| Speed: 3500-4500rpm
| Total Airflow: 2.94-3.78CFM

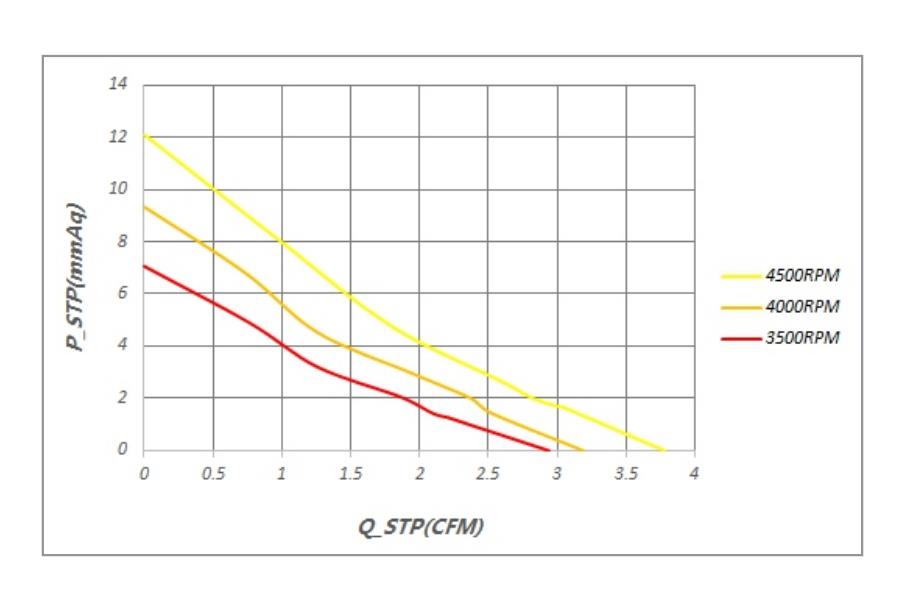

| Air Pressure: 7.06-12.1mmH2O
| Total Noise: 31.2-37.8dBA
| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY6015L05 | 5 | 3.6to6.8 | 0.15 | 0.75 | 3500 | 0.08 | 2.94 | 7.06 | 0.28 | 31.2 | |
| YY6015L12 | 12 | 7.0to13.5 | 0.06 | 0.72 | |||||||
| YY6015M12 | 12 | 7.0to13.5 | 0.08 | 0.96 | 4000 | 0.09 | 3.19 | 9.33 | 0.37 | 35 | |
| YY6015M24 | 24 | 18to26.5 | 0.04 | 0.96 | |||||||
| YY6015H12 | 12 | 7.0to13.5 | 0.11 | 1.32 | 4500 | 0.11 | 3.78 | 12.1 | 0.48 | 37.8 | |
| YY6015H24 | 24 | 18to26.5 | 0.06 | 1.44 | |||||||
