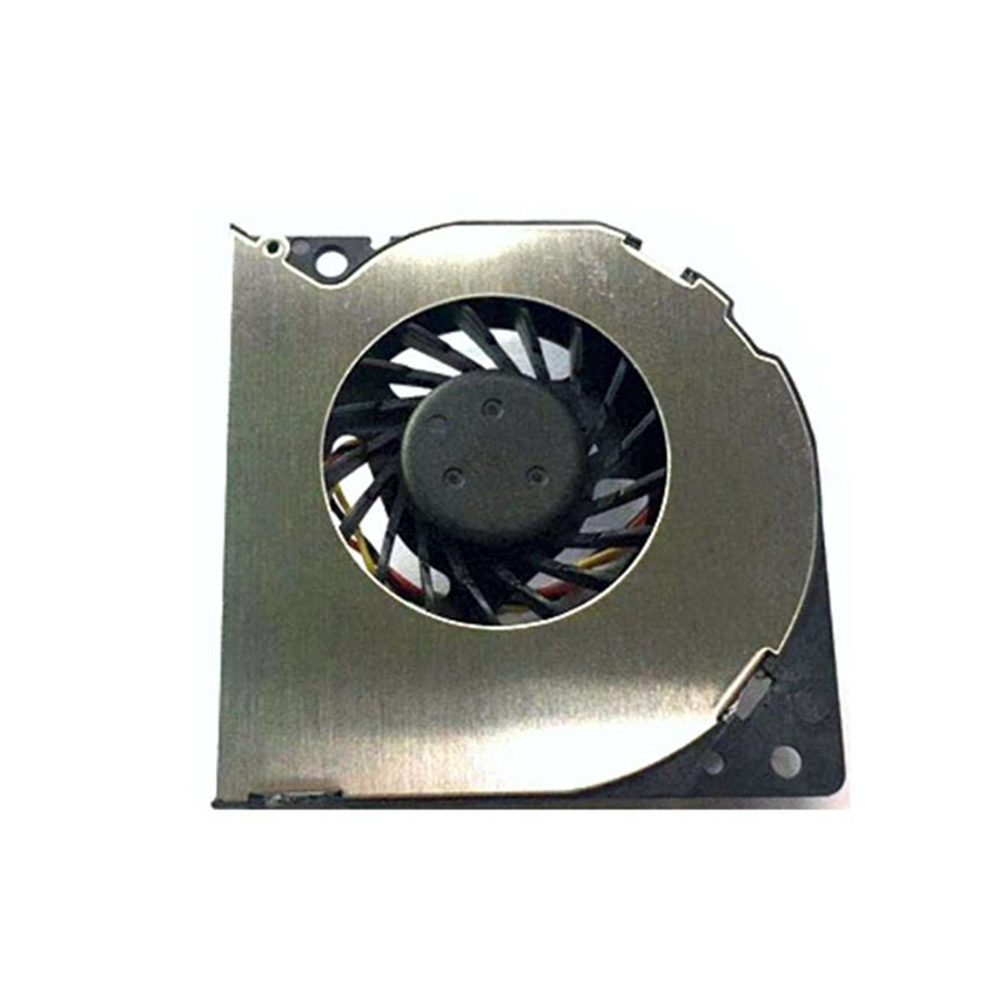

5508 DC Axial fan,Brushless blower DC fan 55*55*08mm
*Designed for projects that requires cooling or ventilation;
*For a replacement fan for various products:MID, UMPC, Notebook, Handheld POS, and Small Plasma Generator,Disinfector... etc.
*High efficiency and low power consumption.
*Bearing Type: Hydraulic/Ball Bearing .
*Full Certification included CE/UL/TUV.
*Customizable Wire and Connectors.
Download
3D Model
SHARE:
Product details:

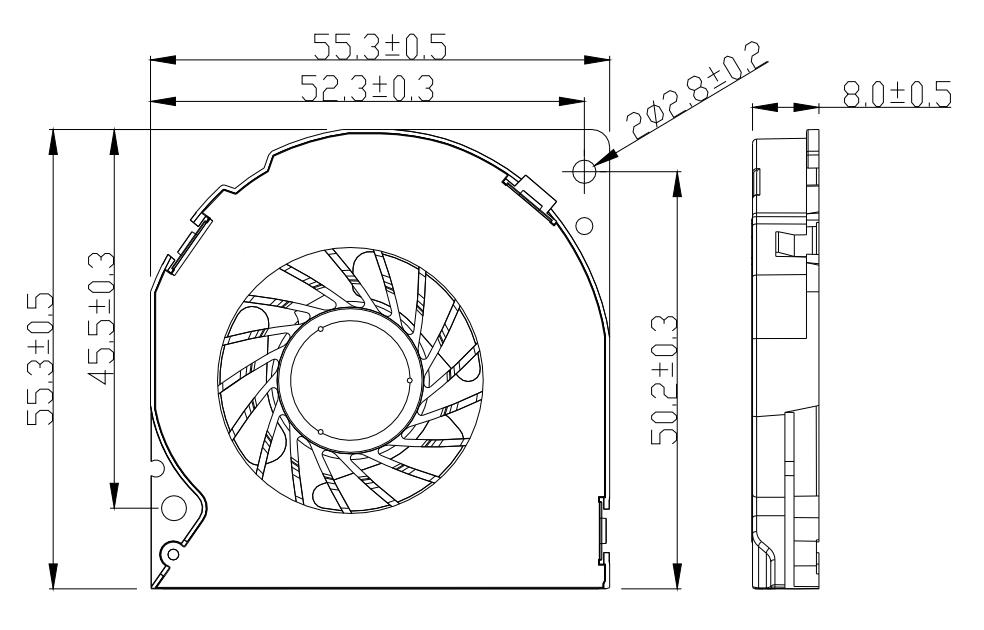

| Size: 55*55*08mm Series
| Voltage: DC 5V/12V/24V
| Current: 0.03-0.24Amp
| Speed: 3500-5000rpm
| Total Airflow: 2.07-3.16CFM
| Air Pressure: 4.38-9.64mmH2O
| Total Noise: 27.5-31.8dBA
| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY5508L05 | 5 | 4.3to5.4 | 0.15 | 0.75 | 3500 | 0.06 | 2.07 | 4.38 | 0.17 | 27.5 | |
| YY5508L12 | 12 | 7.0to13.5 | 0.07 | 0.84 | |||||||
| YY5508L24 | 24 | 18to26.5 | 0.03 | 0.72 | |||||||
| YY5508M05 | 5 | 4.3to5.4 | 0.21 | 1.05 | 4500 | 0.08 | 2.62 | 7.06 | 0.28 | 29.4 | |
| YY5508M12 | 12 | 7.0to13.5 | 0.09 | 1.08 | |||||||
| YY5508M24 | 24 | 18to26.5 | 0.05 | 1.20 | |||||||
| YY5508H05 | 5 | 4.3to5.4 | 0.24 | 1.20 | 5000 | 0.09 | 3.16 | 9.64 | 0.38 | 31.8 | |
| YY5508H12 | 12 | 7.0to13.5 | 0.11 | 1.32 | |||||||
| YY5508H24 | 24 | 18to26.5 | 0.05 | 1.20 | |||||||
