4520 DC Axial fan,Brushless blower DC fan 45*45*20mm
*Designed for projects that requires cooling or ventilation;
*For a replacement fan for various products:MID, UMPC, Smartbook, Handheld POS, and Small Plasma Generator,Disinfector... etc.
*High efficiency and low power consumption
*Bearing Type: Hydraulic/Ball Bearing
*Full Certification included CE/UL/TUV.
*Customizable Wire and Connectors
Download
3D Model
SHARE:
Product details:

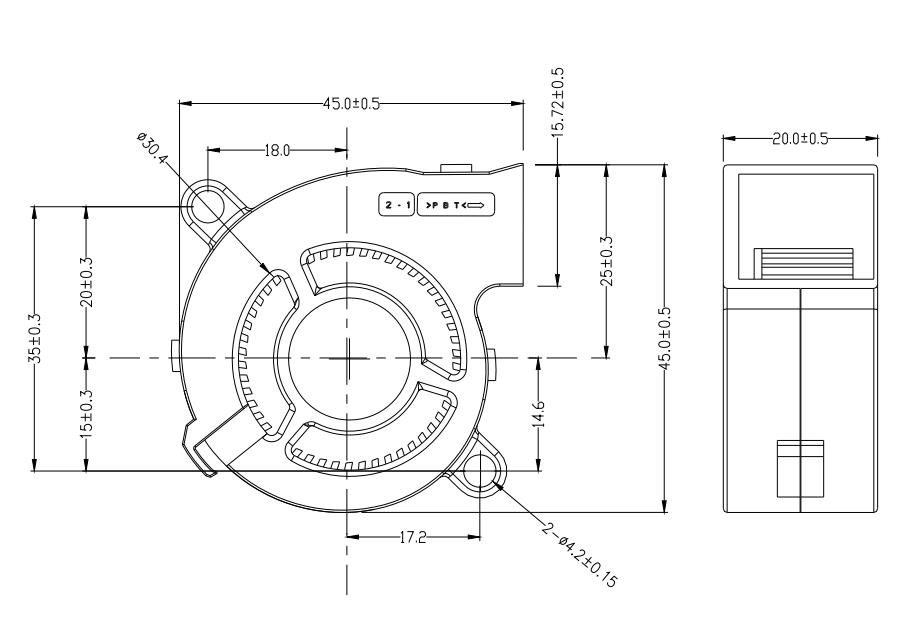

| Size: 45*45*20mm Series
| Voltage: DC 5V/12V/24V
| Current: 0.03-0.24Amp
| Speed: 4000-6000rpm
| Total Airflow: 2.21-3.8CFM
| Air Pressure: 6.06-14.95mmH2O
| Total Noise: 29.7-39.9dBA
| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY4520L05 | 5 | 4.3to5.4 | 0.15 | 0.75 | 4000 | 0.06 | 2.21 | 6.06 | 0.24 | 29.7 | |
| YY4520L12 | 12 | 7.0to13.5 | 0.06 | 0.72 | |||||||
| YY4520L24 | 24 | 18to26.5 | 0.03 | 0.72 | |||||||
| YY4520M05 | 5 | 4.3to5.4 | 0.18 | 0.90 | 5000 | 0.08 | 2.80 | 8.94 | 0.35 | 33.8 | |
| YY4520M12 | 12 | 7.0to13.5 | 0.08 | 0.96 | |||||||
| YY4520M24 | 24 | 18to26.5 | 0.04 | 0.96 | |||||||
| YY4520H05 | 5 | 4.3to5.4 | 0.24 | 1.20 | 6000 | 0.11 | 3.80 | 14.95 | 0.59 | 39.9 | |
| YY4520H12 | 12 | 7.0to13.5 | 0.11 | 1.32 | |||||||
| YY4520H24 | 24 | 18to26.5 | 0.05 | 1.20 | |||||||
