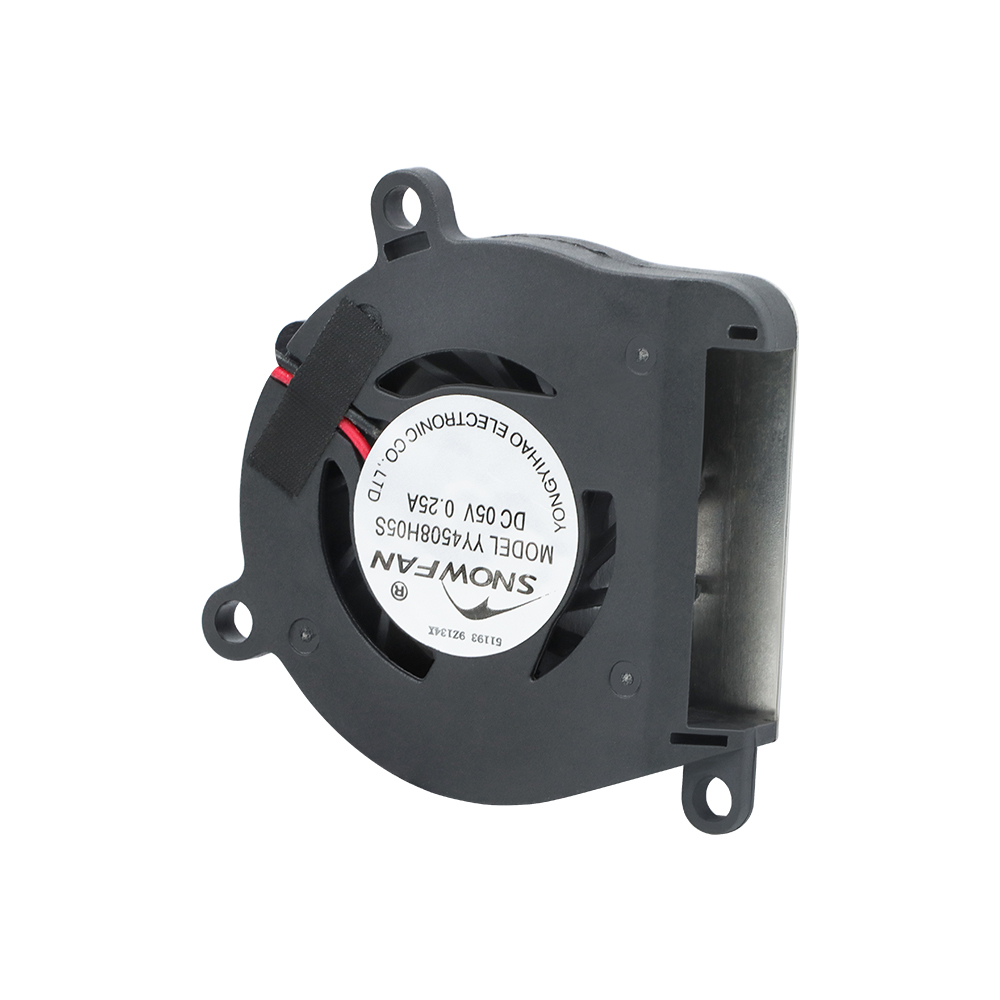

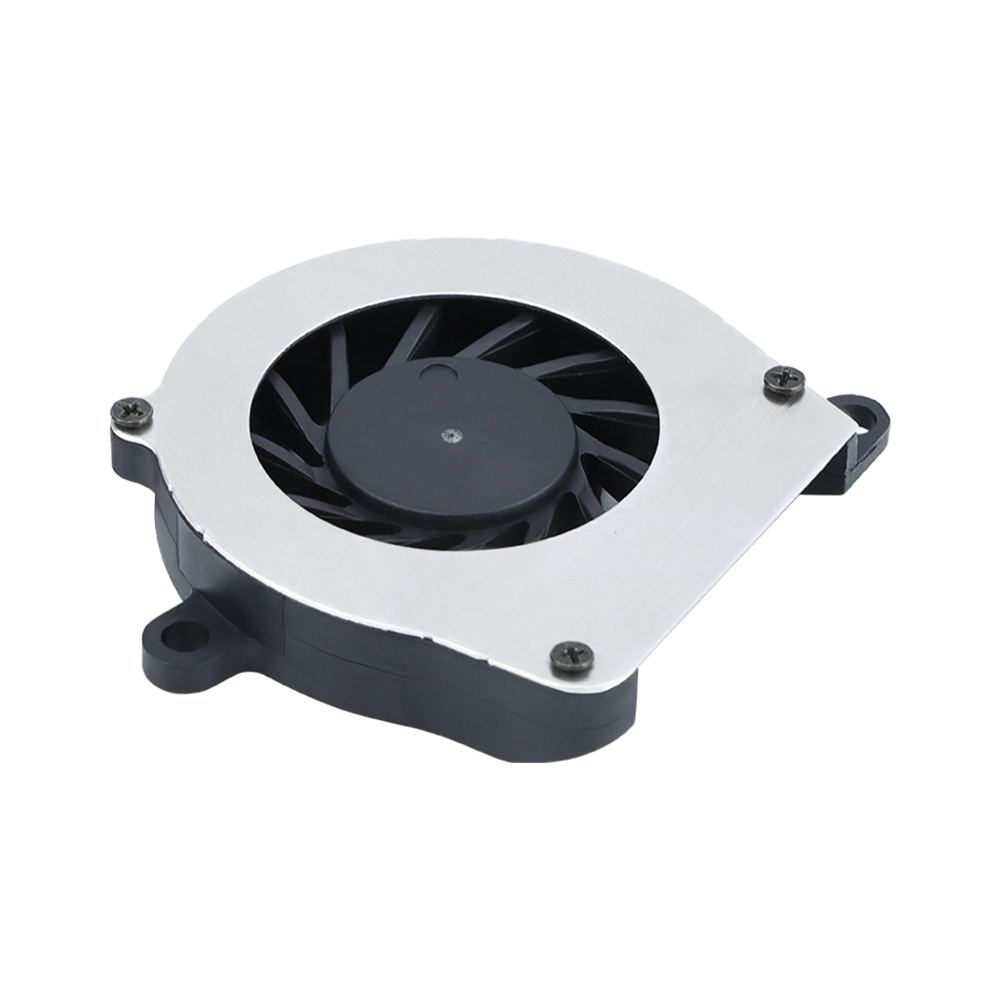

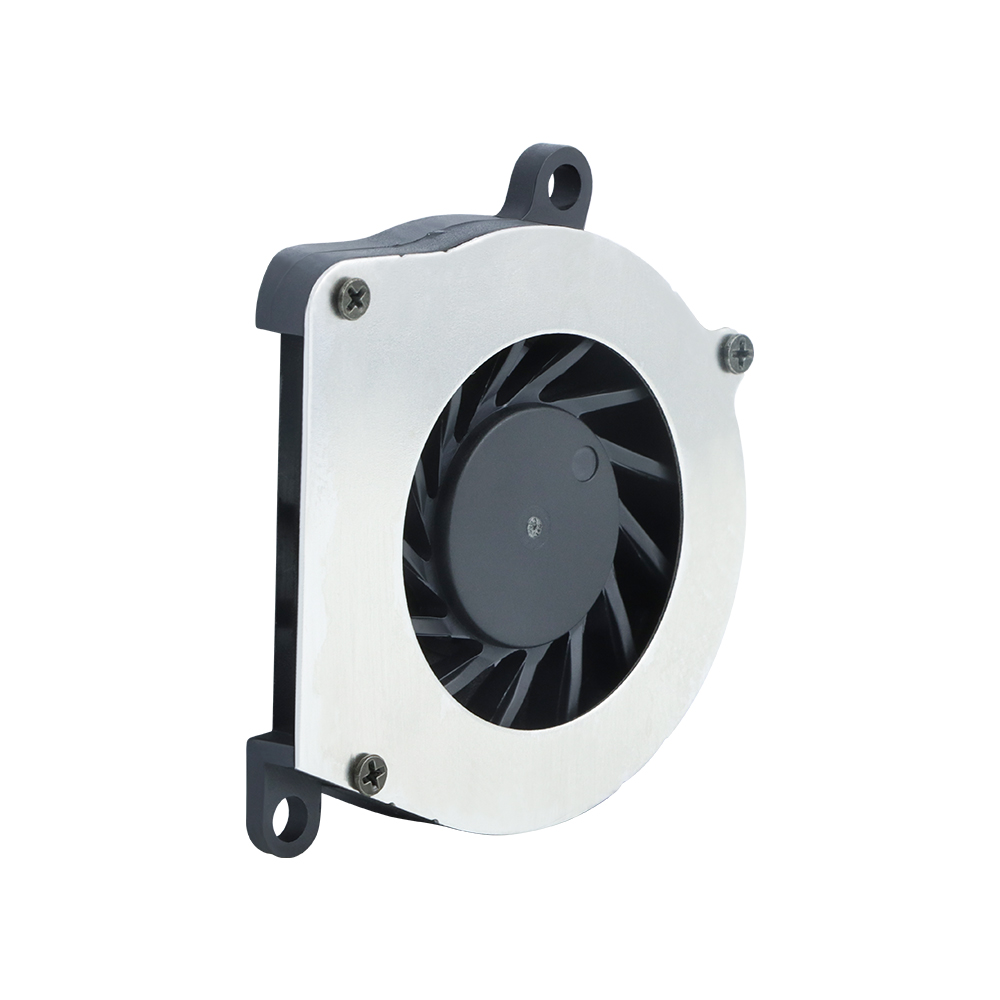

4508 DC Axial fan,Brushless blower DC fan 45*45*08mm
**Designed for projects that requires cooling or ventilation;
**For a replacement fan for various products:MID, UMPC, Smartbook, Handheld POS, and Small Plasma Generator,Disinfector... etc.
**High efficiency and low power consumption
**Bearing Type: Hydraulic/Ball Bearing
**Full Certification included CE/UL/TUV.
**Customizable Wire and Connectors
Download
3D Model
SHARE:
Product details:
| Size: 45*45*08mm Series
| Voltage: DC 5V/12V
| Current: 0.07-0.17Amp
| Speed: 3500-5000rpm
| Total Airflow: 1.07-1.45CFM
| Air Pressure: 3.54-7.08mmH2O
| Total Noise: 21.8-25dBA
| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY4508L05 | 5 | 4.3to5.4 | 0.08 | 0.40 | 3500 | 0.03 | 1.07 | 3.54 | 0.14 | 21.8 | |
| YY4508M05 | 5 | 4.3to5.4 | 0.17 | 0.85 | 4500 | 0.04 | 1.35 | 7.0 | 0.28 | 23 | |
| YY4508M12 | 12 | 7.0to13.5 | 0.07 | 0.84 | |||||||
| YY4508H12 | 12 | 7.0to13.5 | 0.09 | 1.08 | 5000 | 0.04 | 1.45 | 7.08 | 0.28 | 25 | |
