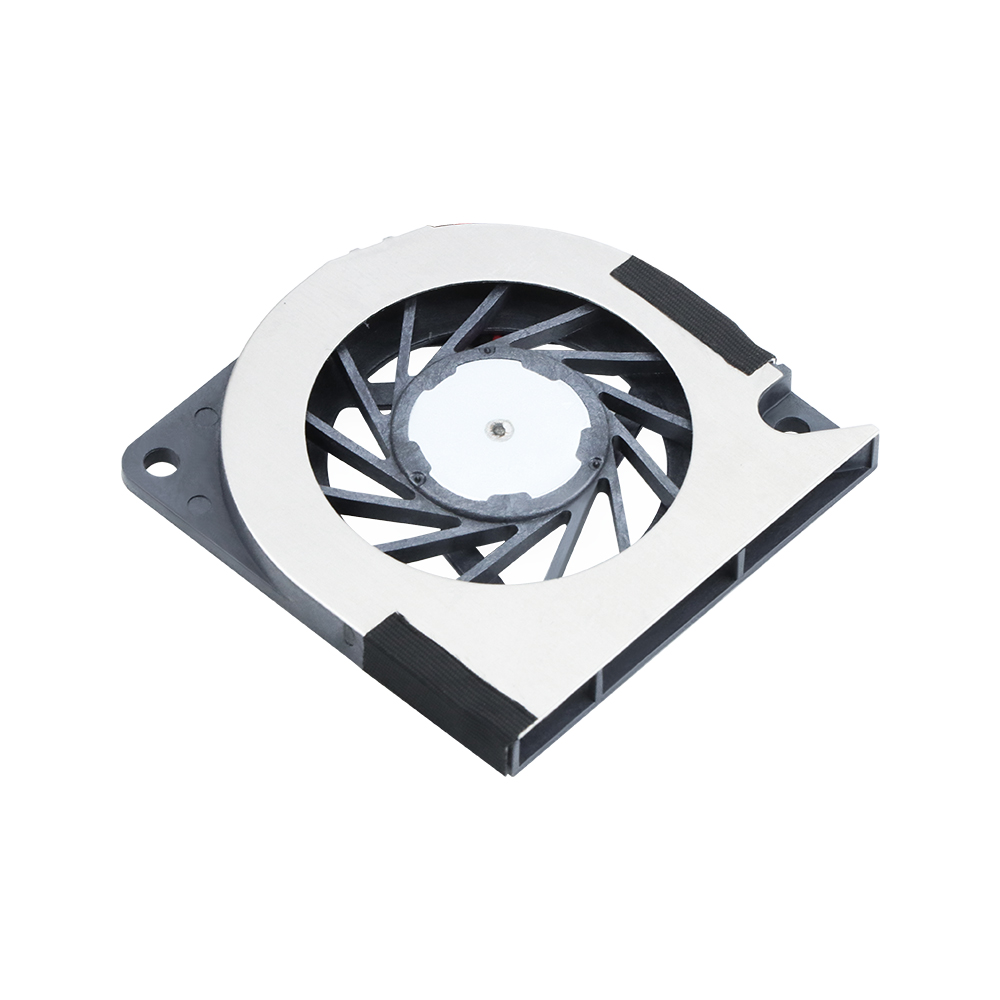

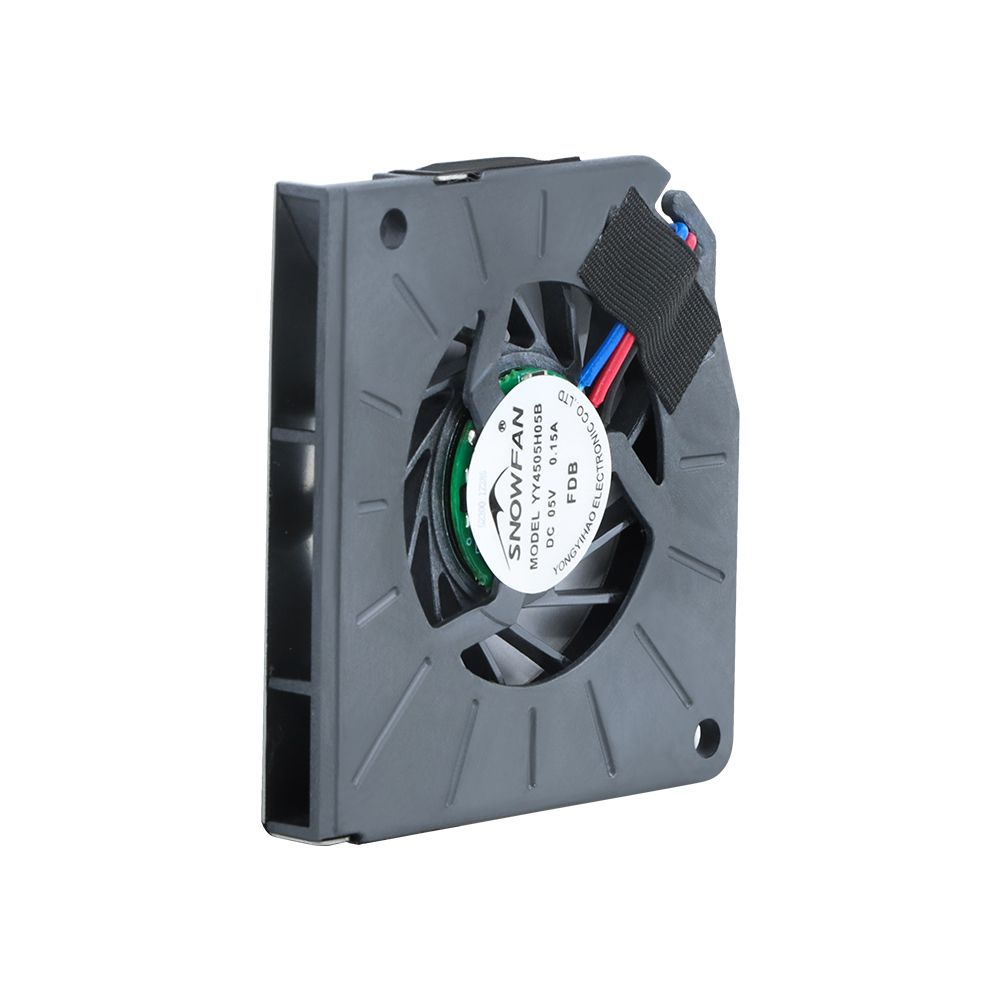

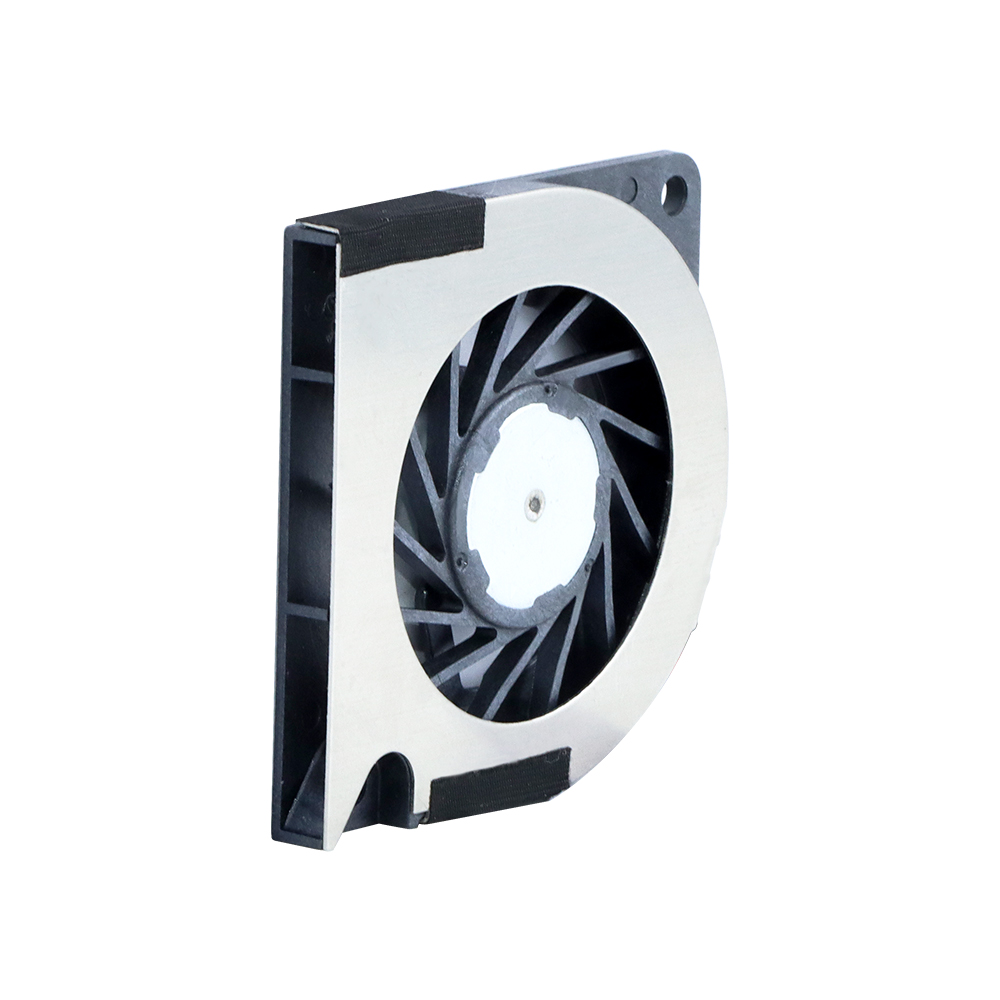

4505 DC Axial fan,Brushless blower DC fan 45*45*05mm
*Designed for projects that requires cooling or ventilation;
*For a replacement fan for various products:MID, UMPC, Smartbook, Handheld POS, and Small Plasma Generator,Disinfector... etc.
*High efficiency and low power consumption
*Bearing Type: Hydraulic/Ball Bearing
*Full Certification included CE/UL/TUV.
*Customizable Wire and Connectors
Download
3D Model
SHARE:
Product details:

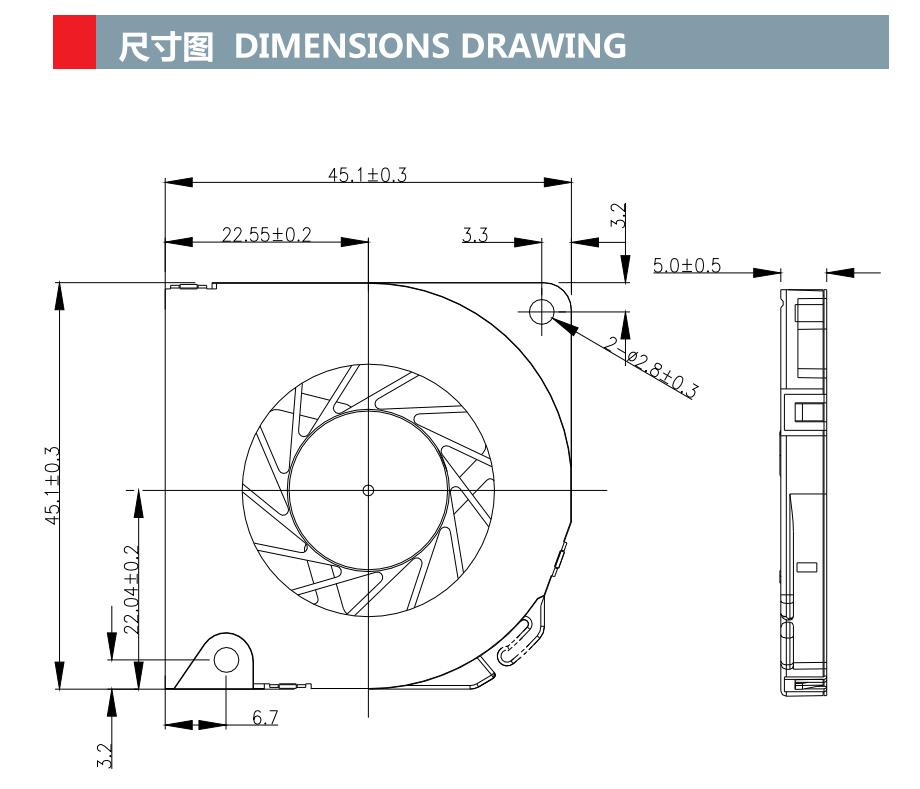

| Size: 45*45*05mm Series
| Voltage: DC 5V/12V/24V
| Current: 0.03-0.25Amp
| Speed: 4500-6500rpm
| Total Airflow: 1.19-1.81CFM
| Air Pressure: 3.77-9.06mmH2O
| Total Noise: 23.5-31.8dBA
| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY4505L05 | 5 | 4.3to5.4 | 0.12 | 0.60 | 4500 | 0.03 | 1.19 | 3.77 | 0.15 | 23.5 | |
| YY4505L12 | 12 | 7.0to13.5 | 0.05 | 0.60 | |||||||
| YY4505L24 | 24 | 18to26.5 | 0.03 | 0.72 | |||||||
| YY4505M05 | 5 | 4.3to5.4 | 0.18 | 0.90 | 5500 | 0.05 | 1.68 | 6.98 | 0.27 | 28.8 | |
| YY4505M12 | 12 | 7.0to13.5 | 0.08 | 0.96 | |||||||
| YY4505M24 | 24 | 18to26.5 | 0.04 | 0.96 | |||||||
| YY4505H05 | 5 | 4.3to5.4 | 0.25 | 1.25 | 6500 | 0.06 | 1.81 | 9.06 | 0.36 | 31.8 | |
| YY4505H12 | 12 | 7.0to13.5 | 0.12 | 1.44 | |||||||
| YY4505H24 | 24 | 18to26.5 | 0.06 | 1.44 | |||||||
