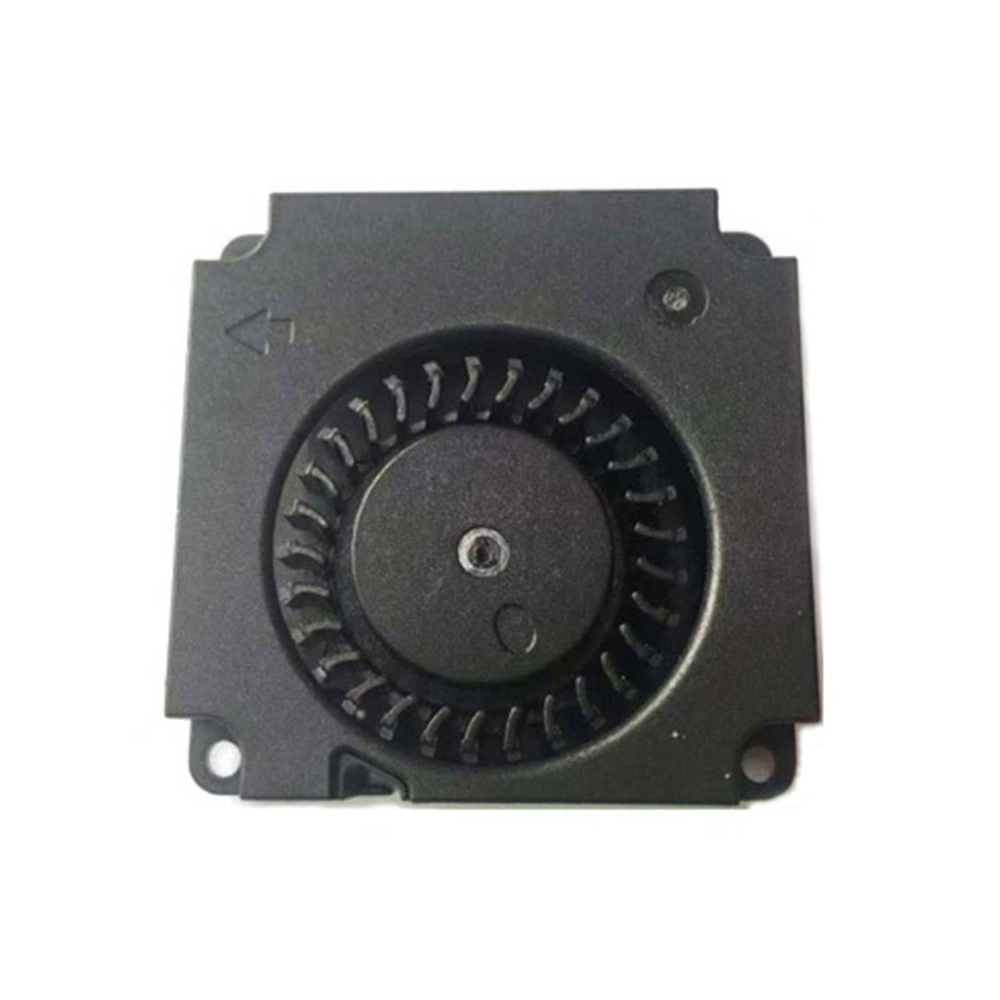

4010 DC Axial fan,Brushless blower DC fan 40*40*10mm
*Designed for projects that requires cooling or ventilation;
*For a replacement fan for various products:MID, UMPC, Smartbook, Handheld POS, and Small Plasma Generator,Disinfector... etc.
*High efficiency and low power consumption
*Bearing Type: Hydraulic/Ball Bearing
*Full Certification included CE/UL/TUV.
*Customizable Wire and Connectors
Download
3D Model
SHARE:
Product details:

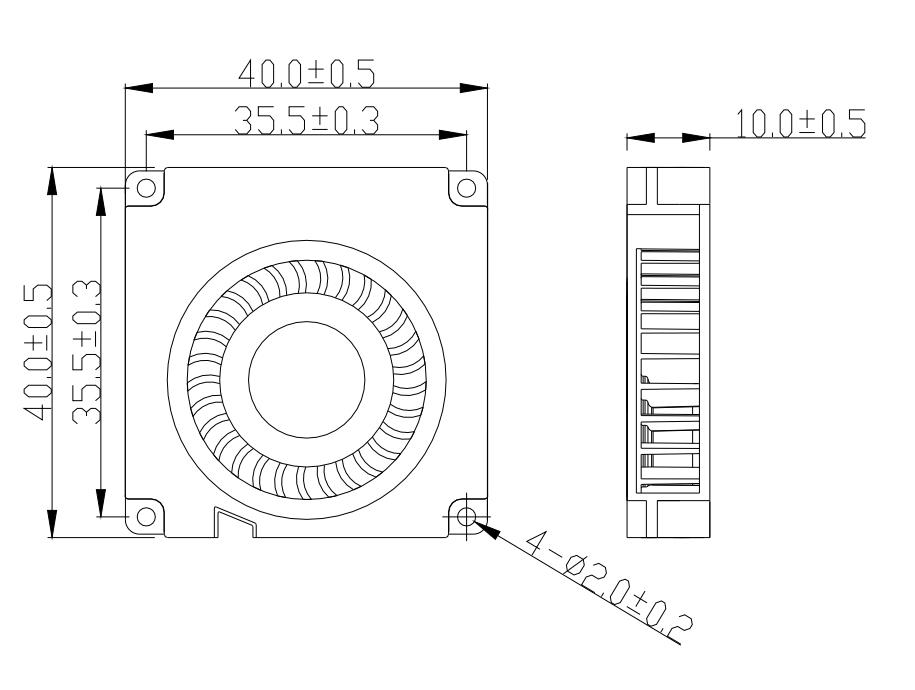

| Size: 40*40*10mm Series
| Voltage: DC 5V
| Current: 0.35Amp
| Speed: 10000rpm
| Total Airflow: 3.03CFM
| Air Pressure: 13.38 mmH2O
| Total Noise: 36.8dBA
| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY4010H05 | 5 | 4.3-5.4 | 0.35 | 1.75 | 10000 | 0.09 | 3.03 | 13.38 | 0.53 | 36.8 | |
