Centrifugal fan,Centrifugal Cooling fan ,centrifugal exhaust fan
* Bearings: Ball Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

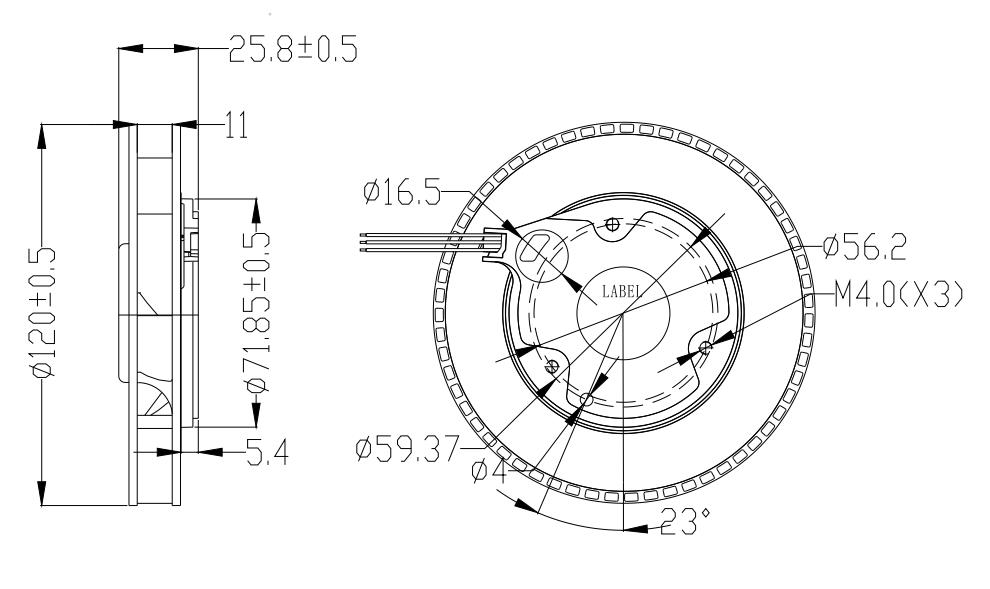

| Size: 120*120*25mm
| Voltage: DC 12V-48V
| Current: 0.23-1 Amp
| Speed: 3500rpm

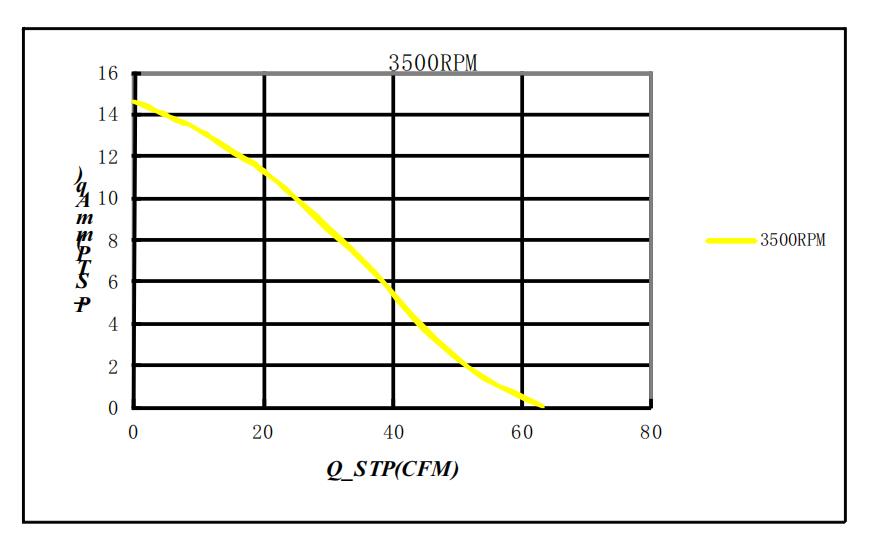

| Total Airflow: 63.2CFM
| Air Pressure: 14.55 mmH2O
| Total Noise: 54.7dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | CMM | CFM | mmH2O | INH2O | DB-A | |
| Φ120-H12 | 12 | 7.0to13.5 | 1.0 | 12 | 3500 | 1.79 | 63.2 | 14.55 | 0.57 | 54.7 |
| Φ120-H24 | 24 | 18to26.5 | 0.48 | 11.52 | ||||||
| Φ120-H48 | 48 | 36to54 | 0.23 | 11.04 | ||||||
Link: Rubber 3D print
