Centrifugal duct fan,48V centrifugal inline fan ,single inlet centrifugal fan

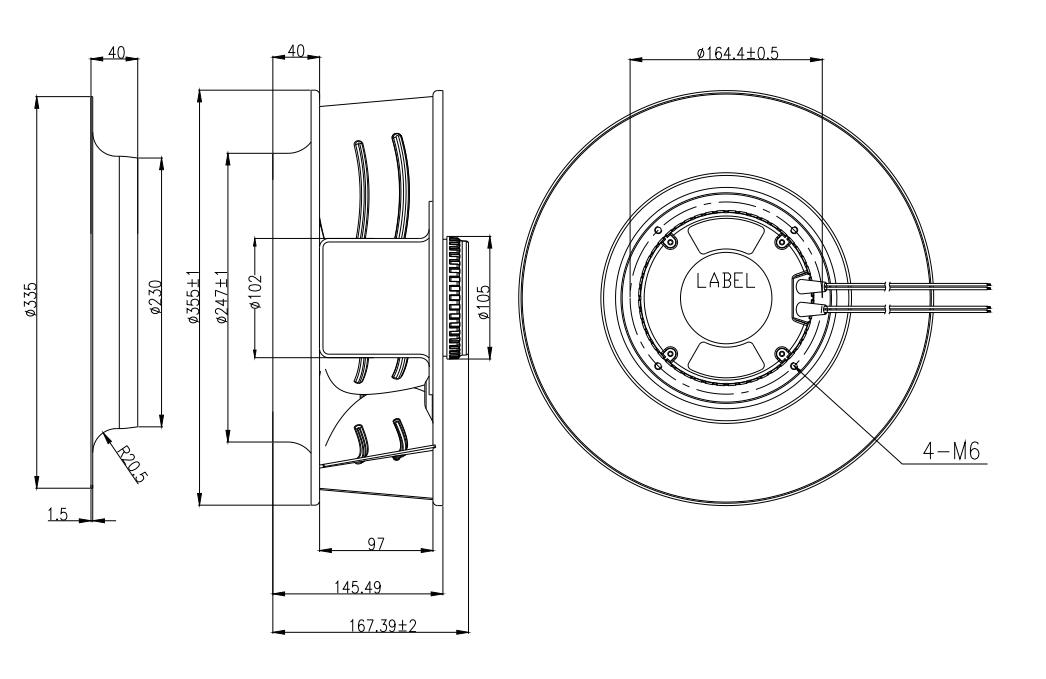

| Size: 355MM Diameter
| Voltage: DC 48V
| Current: 7.3 Amp
| Speed: 2000rpm
| Total Airflow: 1435.37CFM

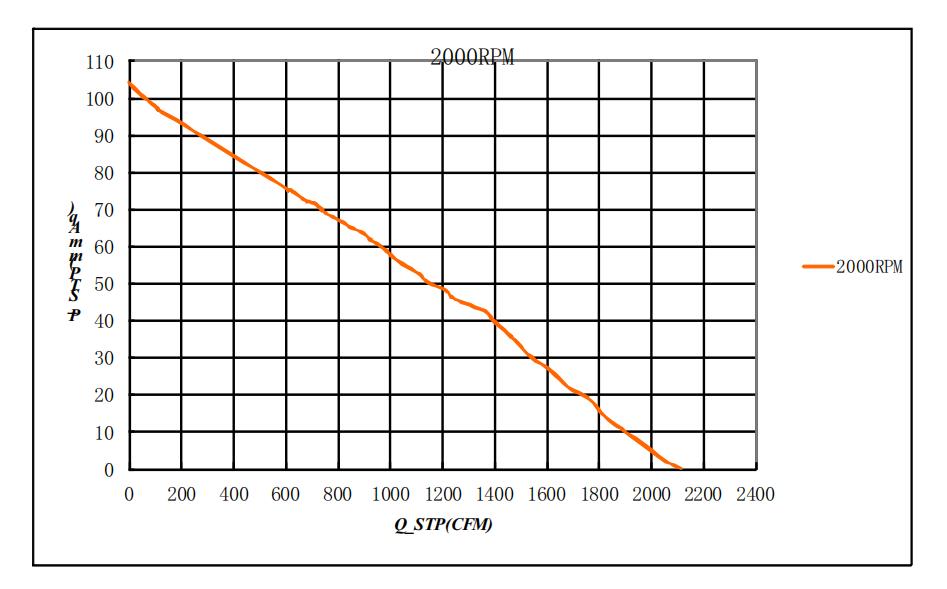

| Air Pressure: 104.09 mmH2O
| Total Noise: 70dBA
Download
3D Model
SHARE:
Product details:
* Bearings: Ball Bearing
* Strong aluminum Impeller
* 0-10V/PWM Stepless-speed control constantly variable speed.
* Brushless DC external Rotor Motor, Motor Protection Type: IP44/IP54
* Special Rotor Opening Design,Tecch output, Locked-rotor protection,Over voltage protection, over-currect protection, solf start protection.
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB),Speed control mode(PWM/TC/VC/CC/CS).
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | CMH | CFM | mmH2O | INH2O | DB-A | |
| Φ355-H48B | 48 | 36to54 | 7.3 | 390 | 2000 | 2441.11 | 1435.37 | 104.09 | 4.10 | 70.0 |
