Aluminum Centrifugal fan,PWM centrifugal fan ,Backward curved centrifugal fan

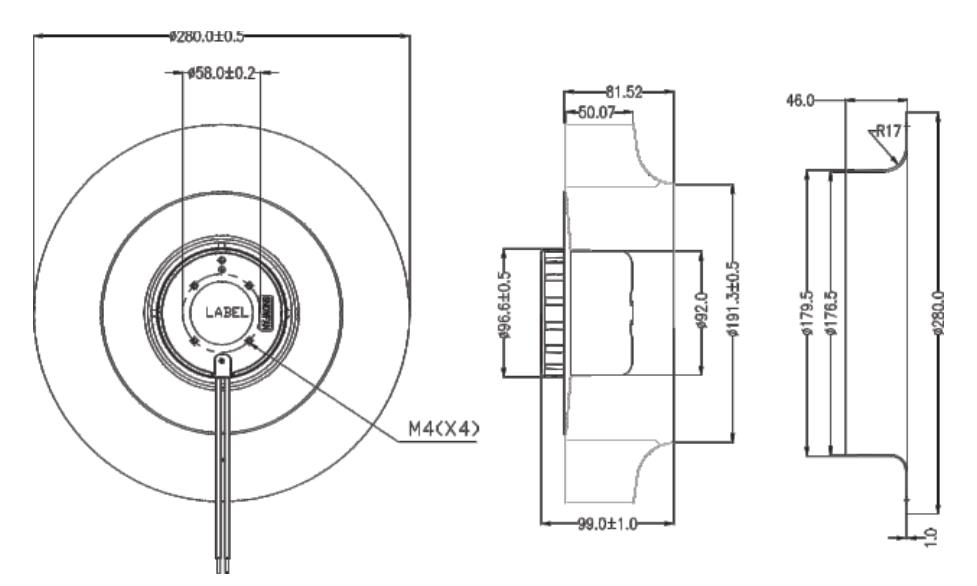

| Size: 280mm Diameter
| Voltage: DC 24V-48V
| Current: 3-6.2Amp
| Speed: 2200rpm

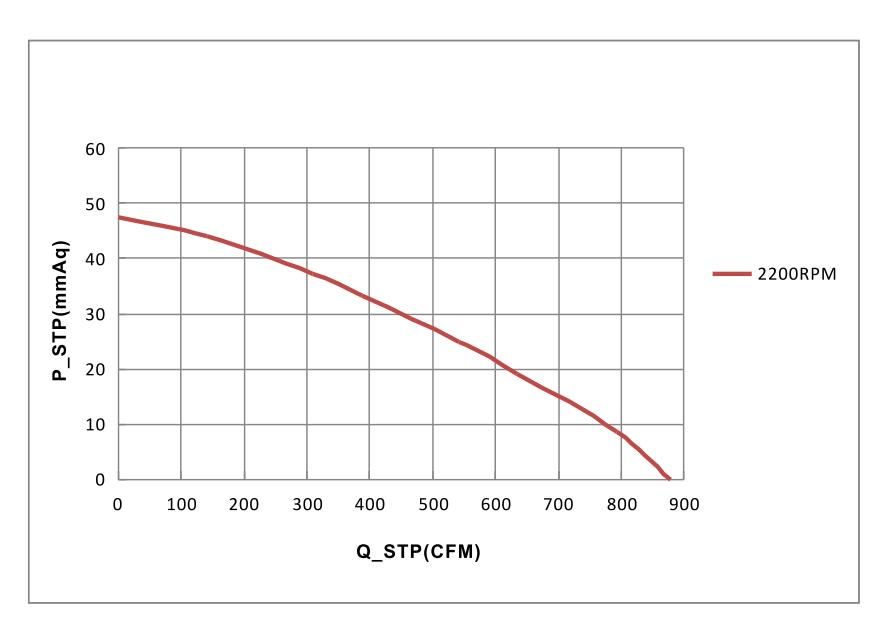

| Total Airflow: 877.4CFM
| Air Pressure: 47.6 mmH2O
| Total Noise: 73dBA
Download
3D Model
SHARE:
Product details:
* Bearings: Ball Bearing
* Strong aluminum Impeller
* 0-10V/PWM Stepless-speed control constantly variable speed.
* Brushless DC external Rotor Motor, Motor Protection Type: IP44/IP54
* Special Rotor Opening Design,Tecch output, Locked-rotor protection,Over voltage protection, over-currect protection, solf start protection.
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB),Speed control mode(PWM/TC/VC/CC/CS).
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | CMH | CFM | mmH2O | INH2O | DB-A | |
| Φ280-H24 | 24 | 18to26.5 | 6.2 | 148.8 | 2200 | 1491.6 | 877.4 | 47.6 | 1.88 | 73.0 |
| Φ280-H48 | 48 | 36to54 | 3.0 | 144 | ||||||
