Centrifugal type 24V 48V DC Blower Fan backward curved centrifugal fan 225mm

Centrifugal fan 225MM , centrifugal fan ,DC Backward centrifugal fan


| Size: 225mm Diameter

| Voltage: DC 24V/48V

| Current: 2.5-5 Amp

| Speed: 2200rpm

| Total Airflow: 645.8CFM

| Air Pressure: 38.9 mmH2O

| Total Noise: 71dBA


Send Inquiry Download 3D Model

SHARE:

Product Details

Product details:

 * Bearings: Ball Bearing

 * Strong aluminum Impeller

 * 0-10V/PWM Stepless-speed control constantly variable speed.

 * Brushless DC external Rotor Motor, Motor Protection Type: IP44/IP54

 * Special Rotor Opening Design,Tecch output, Locked-rotor protection,Over voltage protection, over-currect protection, solf start protection.

 * Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB),Speed control mode(PWM/TC/VC/CC/CS).

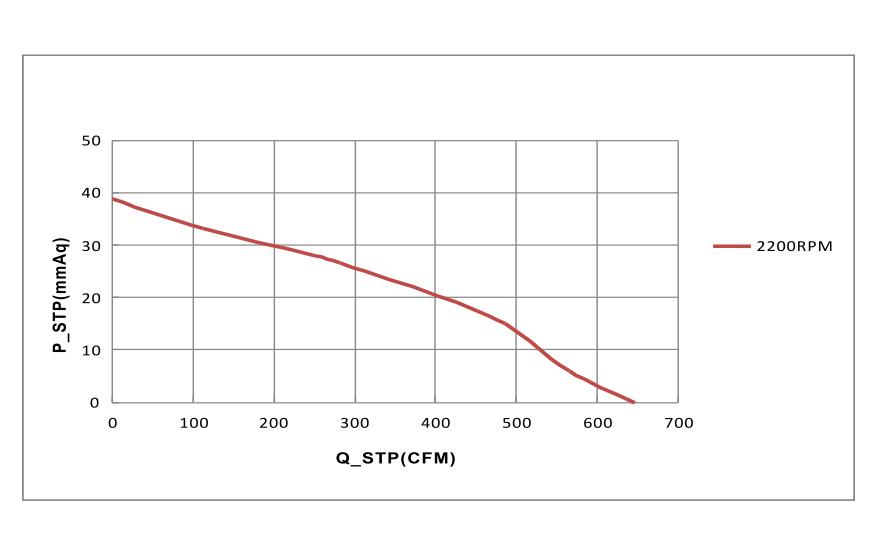

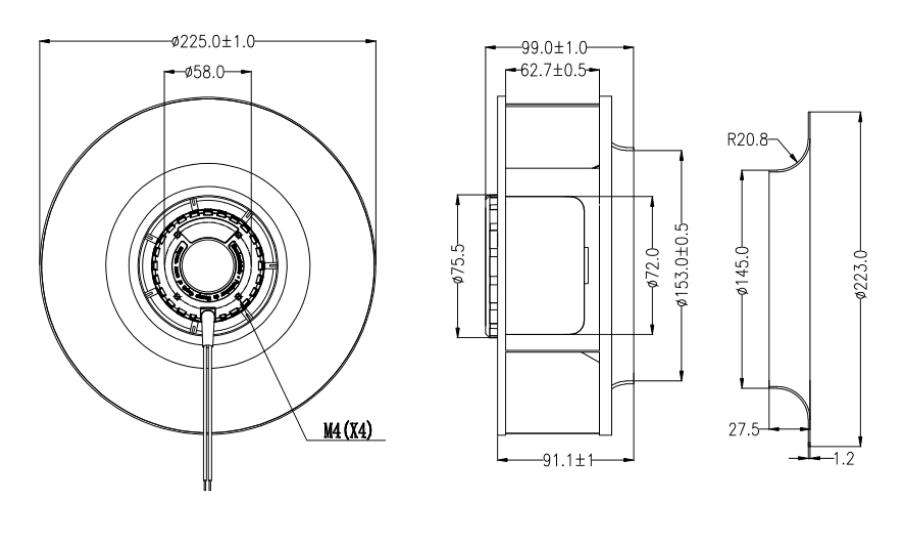

Centrifugal type 24V 48V DC Blower Fan backward curved centrifugal fan 225mm(图1)Centrifugal type 24V 48V DC Blower Fan backward curved centrifugal fan 225mm(图2)

Compare With Similar Items

SizeRated VoltageOperating Voltage RangeRated CurrentRated Input PowerSpeedMaximum Air FlowMaximum Air PressureNoise

VDCVDCAmpWattR.P.MCMHCFMmmH2OINH2ODB-A
Φ225-H242418to26.56.2148.828001196.3703.754.52.1574.5
Φ225-H484836to543.0 144
