EC Fan,EC Axial Fan,Axial flow fans EC
* Bearings: Ball /Sleeve/Fluid Bearing
* Long Lifespan Up to 70 000 hrs.
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* CE Certificated.
* Customizable Wire and Connectors
* Customizable Function for Signal output(FG/RD)
Download
3D Model
SHARE:
Product details:

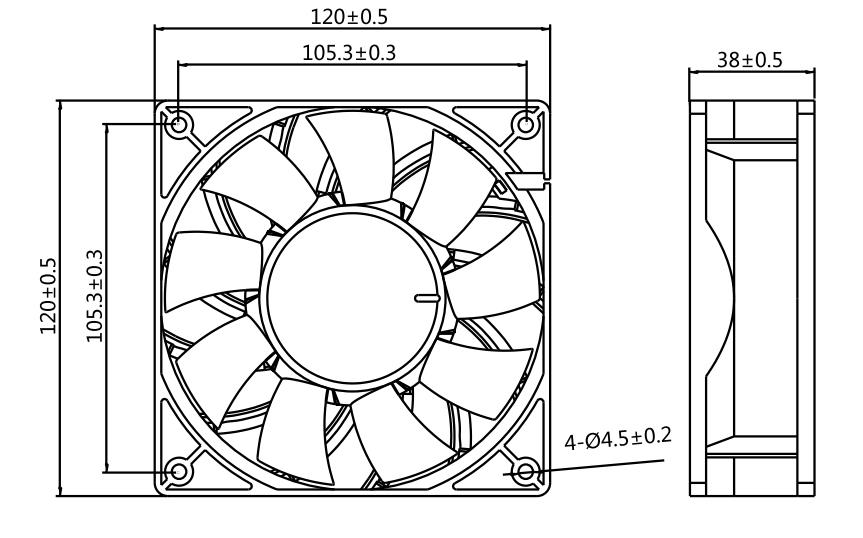

| Size: 120*120*38mm Series
| Voltage: AC/EC 80-265V
| Frequency: 50-60Hz
| Speed: 4500rpm
| Total Airflow: 209.1CFM
| Air Pressure: 25.5 mmH2O
| Total Noise: 64.7dBA
| Size | Rated Voltage | Operating Voltage Range | Frequency | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VAC | VAC | Hz | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 120*120*38-H110 | 110 | 80to135 | 50/60 | 30 | 4500 | 5.94 | 209.10 | 25.5 | 1.00 | 64.7 |
| 120*120*38-H220 | 220 | 180to265 | 50/60 | 30 | ||||||
