12038-1 EC Cooling Fan 120*120*38mm low noise 120mm EC Axial Flow Fan

120mm EC Fan,EC Axial Fan,EC Fan,Axial flow EC fans


 * Bearings: Ball /Sleeve/Fluid Bearing

 * Long Lifespan Up to 70 000 hrs.

 * Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.

 * CE Certificated.

 * Customizable Wire and Connectors


Send Inquiry Download 3D Model

SHARE:

Product Details

Product details:

| Size: 120*120*38mm Series

| Voltage: EC 80-265V

| Frequency: 50-60Hz

| Speed: 3500rpm

| Total Airflow: 133.82CFM

| Air Pressure: 13.1mmH2O

| Total Noise: 52.4 dBA

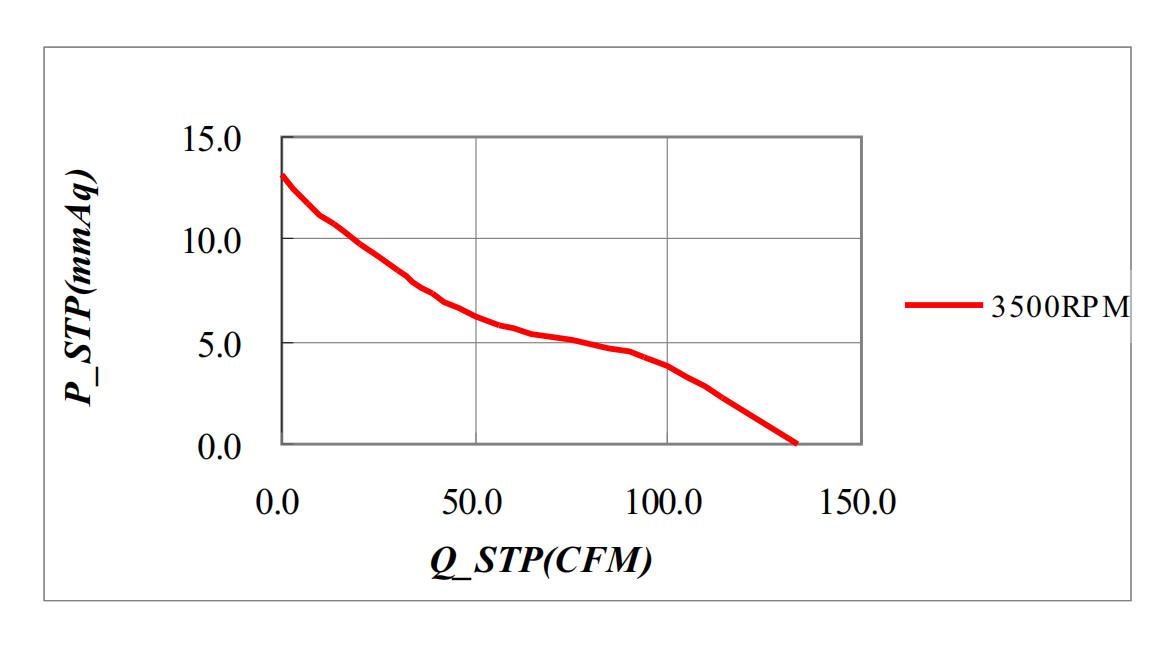

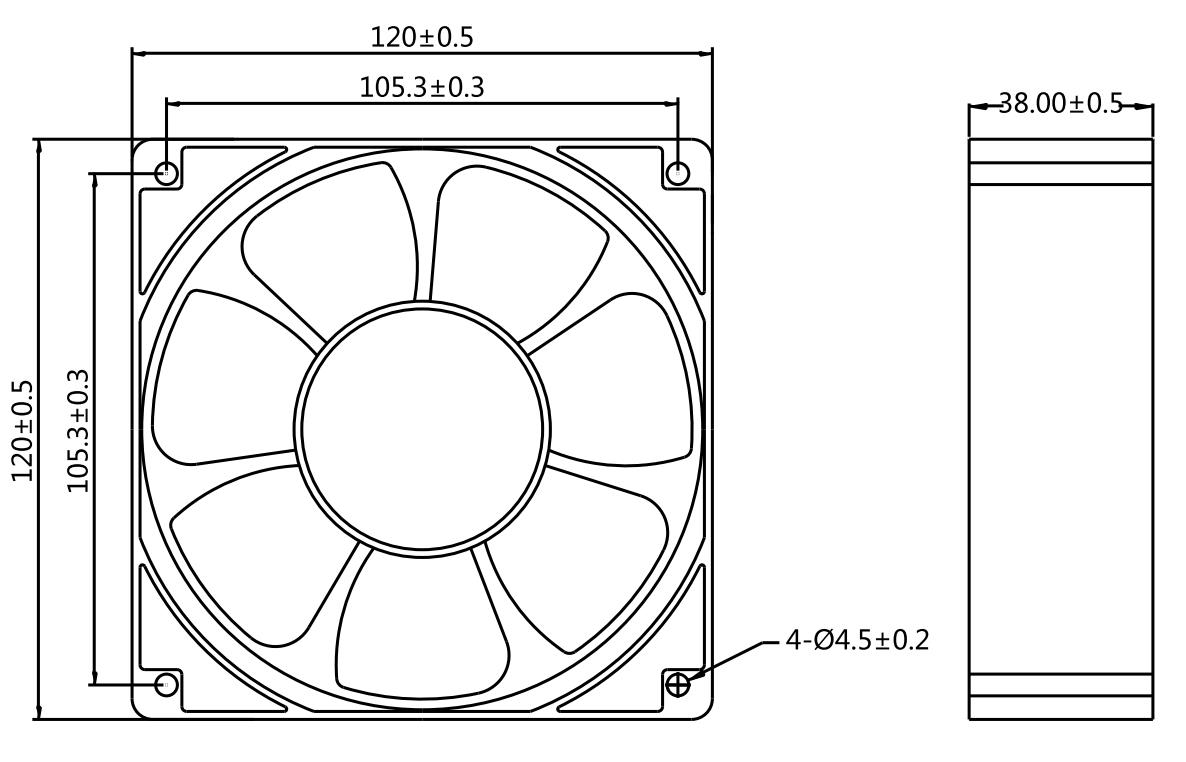

12038-1  EC Cooling Fan 120*120*38mm low noise 120mm EC Axial Flow Fan(图1)12038-1  EC Cooling Fan 120*120*38mm low noise 120mm EC Axial Flow Fan(图2)

Compare With Similar Items

SizeRated VoltageOperating Voltage RangeFrequencyRated Input PowerSpeedMaximum Air FlowMaximum Air PressureNoise

VACVACHzWattR.P.Mm3/minCFMmmH2OINH2ODB-A
120*120*38-H11011080to13550/601535003.80 133.8213.10 0.5252.4
120*120*38-H220220180to26550/6015
