12025-3 EC 120X120X25mm Axial Flow Cooling Fan

120mm Case Fan,Cpu cooling fan,Industrial EC Cooling fan,EC Cooling fan


 * Bearings: Ball Bearing

 * Long Lifespan Up to 70 000 hrs.

 * Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.

 * CE Certificated!

 * Customizable Wire and Connectors


Send Inquiry Download 3D Model

SHARE:

Product Details

Product details:

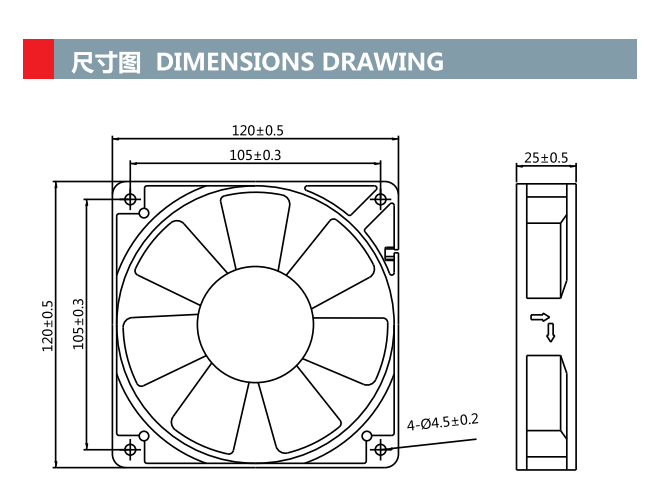

| Size: 120*120*25mm-3 Series

| Voltage: EC 80-265V

| Frequency: 50/60Hz

| Speed: 3000rpm

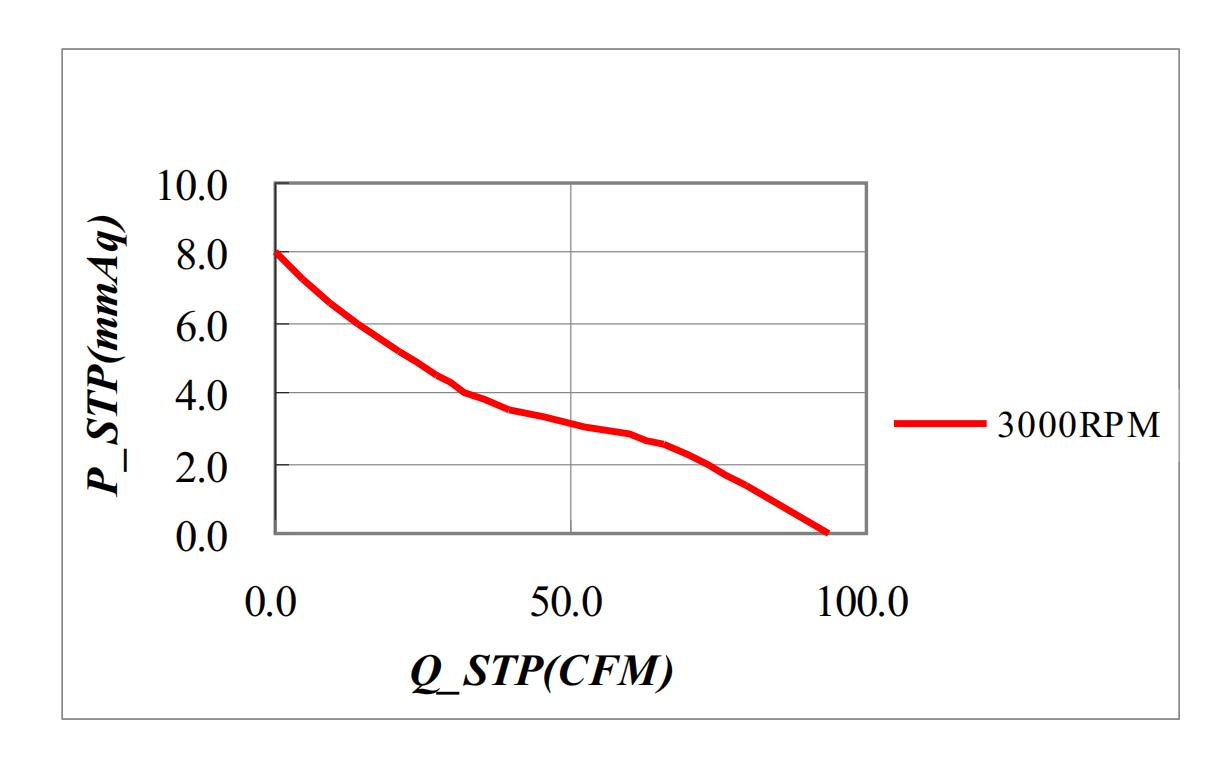

| Total Airflow: 93.6CFM

| Air Pressure: 8 mmH2O

| Total Noise: 49 dBA

12025-3 EC 120X120X25mm Axial Flow Cooling Fan(图1)12025-3 EC 120X120X25mm Axial Flow Cooling Fan(图2)12025-3 EC 120X120X25mm Axial Flow Cooling Fan(图3)

Compare With Similar Items

SizeRated VoltageOperating Voltage RangeFrequencyRated Input PowerSpeedMaximum Air FlowMaximum Air PressureNoise

VACVACHzWattR.P.Mm3/minCFMmmH2OINH2ODB-A
120*120*25-M11011080to13550/604.530002.6693.680.3149
120*120*25-M220220180to26550/605.5
