Strong Centrifugal fan,230V Centrifugal fan ,centrifugal exhaust fan

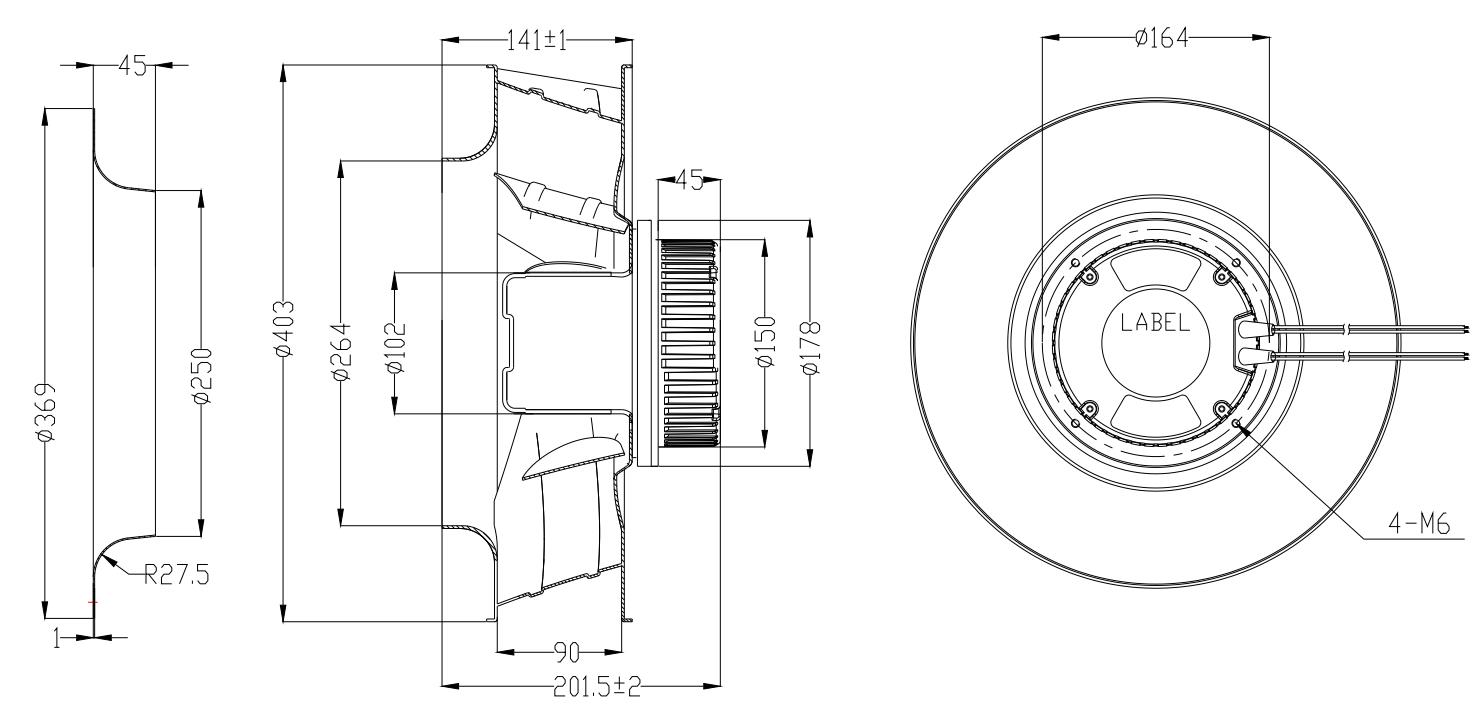

| Size: 400MM Diameter
| Voltage: AC 80V-265V
| Current: 50/60Hz
| Speed: 1460rpm

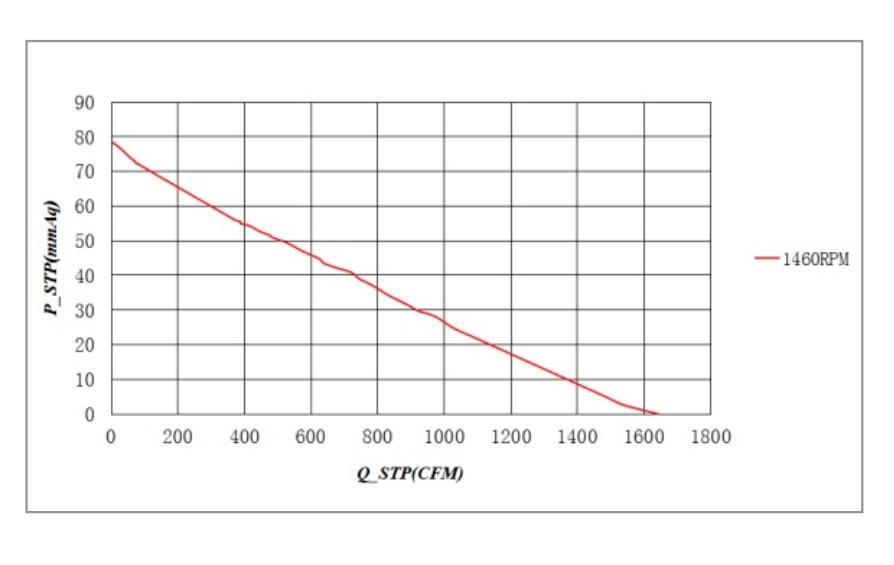

| Total Airflow: 1642.76CFM
| Air Pressure: 78.63 mmH2O
| Total Noise:72dBA
Download
3D Model
SHARE:
Product details:
* Bearings: Ball Bearing
* Strong aluminum Impeller
* 0-10V/PWM Stepless-speed control constantly variable speed.
* Brushless DC external Rotor Motor, Motor Protection Type: IP44/IP54
* Special Rotor Opening Design,Tecch output, Locked-rotor protection,Over voltage protection, over-currect protection, solf start protection.
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB),Speed control mode(PWM/TC/VC/CC/CS).
| Size | Rated Voltage | Operating Voltage Range | Frequency | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VAC | VAC | Hz | Watt | R.P.M | CMH | CFM | mmH2O | INH2O | DB-A | |
| Φ400-H110 | 110 | 80to135 | 50/60 | 380 | 1460 | 2793.81 | 1642.76 | 78.63 | 3.1 | 72 |
| Φ400-H220 | 220 | 180to265 | 50/60 | 380 | ||||||
