220mm EC plastic backward centrifugal fan 60W 2600 RPM

220MM Centrifugal fan, backward centrifugal fan ,DC Backward centrifugal fan


| Size: 220mm Diameter

| Voltage: EC80-265V

| Current: 50/60Hz

| Speed: 2600rpm

| Total Airflow: 413.1CFM

| Air Pressure: 34.9 mmH2O

| Total Noise: 70dBA


Send Inquiry Download 3D Model

SHARE:

Product Details

Product details:

 * Bearings: Ball Bearing

 * Premium Plastic material(UL 94V-0)

 * 0-10V/PWM Stepless-speed control constantly variable speed.

 * Brushless DC external Rotor Motor, Motor Protection Type: IP44/IP54

 * Special Rotor Opening Design,Tecch output, Locked-rotor protection,Over voltage protection, over-currect protection, solf start protection.

 * Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB),Speed control mode(PWM/TC/VC/CC/CS).

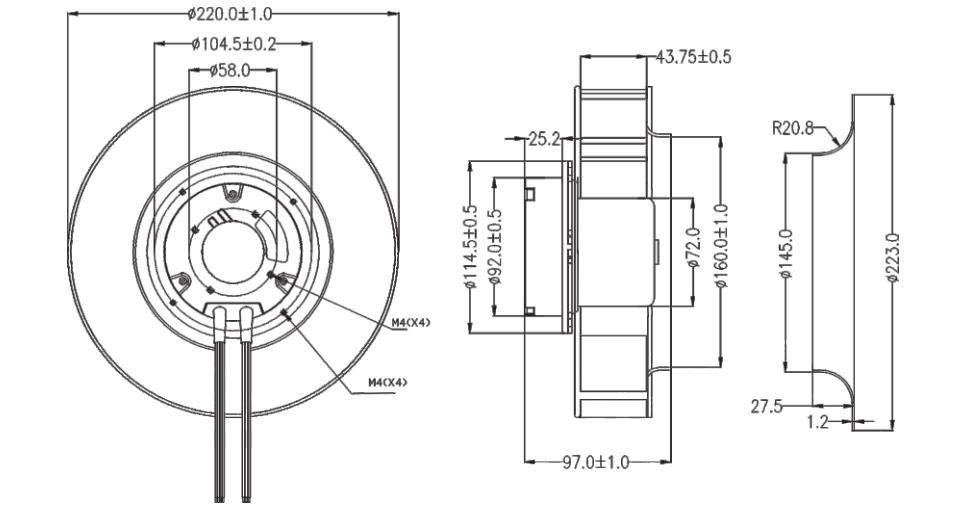

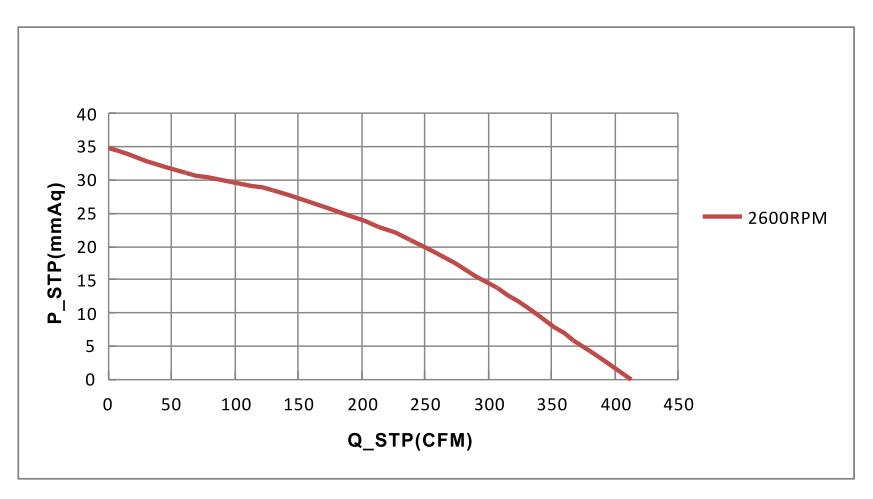

220mm EC plastic backward centrifugal fan 60W 2600 RPM(图1)220mm EC plastic backward centrifugal fan 60W 2600 RPM(图2)

Compare With Similar Items

SizeRated VoltageOperating Voltage RangeFrequencyRated Input PowerSpeedMaximum Air FlowMaximum Air PressureNoise

VACVACHzWattR.P.MCMHCFMmmH2OINH2ODB-A
Φ220-H11011080to13550/60602600702.3413.134.91.470
Φ220-H220220180to26550/6060
